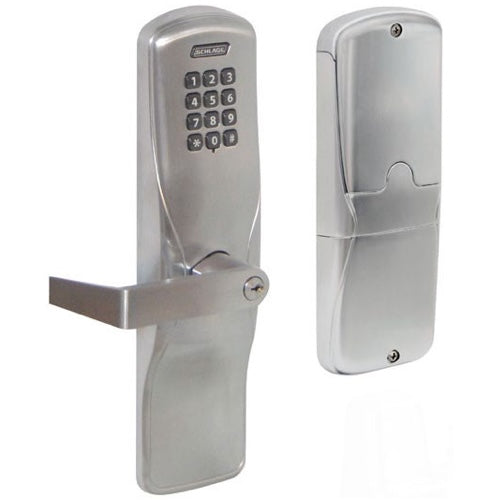

Schlage Electronic Security CO100-993R70KP-RHO626 LD CO-100 Standalone Electronic Device Trim

Product Description

The Schlage Electronic Security CO100-993R70KP-RHO626 LD CO-100 is a standalone lock designed for easy electronic access control. This lock is manually programmable and eliminates the need for a network. Each user has a unique PIN code, allowing for up to five hundred different codes. The device is ANSI/BHMA A156.25 and Grade 1 certified, ensuring durability and reliability. Operating between negative thirty-one to one hundred fifty-one degrees Fahrenheit, it is powered by four AA batteries.

• Manually Programmable
• Stores up to 500 Unique 3-6 Digit PIN Codes
• Remote Release Push Button Capability

Product Highlights

This lock is perfect for various applications, including visitor areas, maintenance rooms, and outdoor spaces. It features a keypad and is compatible with many exit devices.

Product Information

Standard Information

• Finish: Satin Chrome
• Function: 70-Classroom/Storeroom

Technical Specifications

• Cylinder Type: Less Conventional Cylinder
• Lever Style: RHO-Rhodes
• Grade: ANSI/BHMA Grade 1
• Power Source: 4 AA Batteries
• Operating Temperature: -31 to 151 degrees Fahrenheit
• Door Thickness: 1-3/4 inches
• Current Draw: Up to 250 mA
• Voltage: 6V DC
• Access Type: Electronic, Standalone
