Schlage Electronic Security 653-0405-L2 650 Series Keyswitches

Product Description

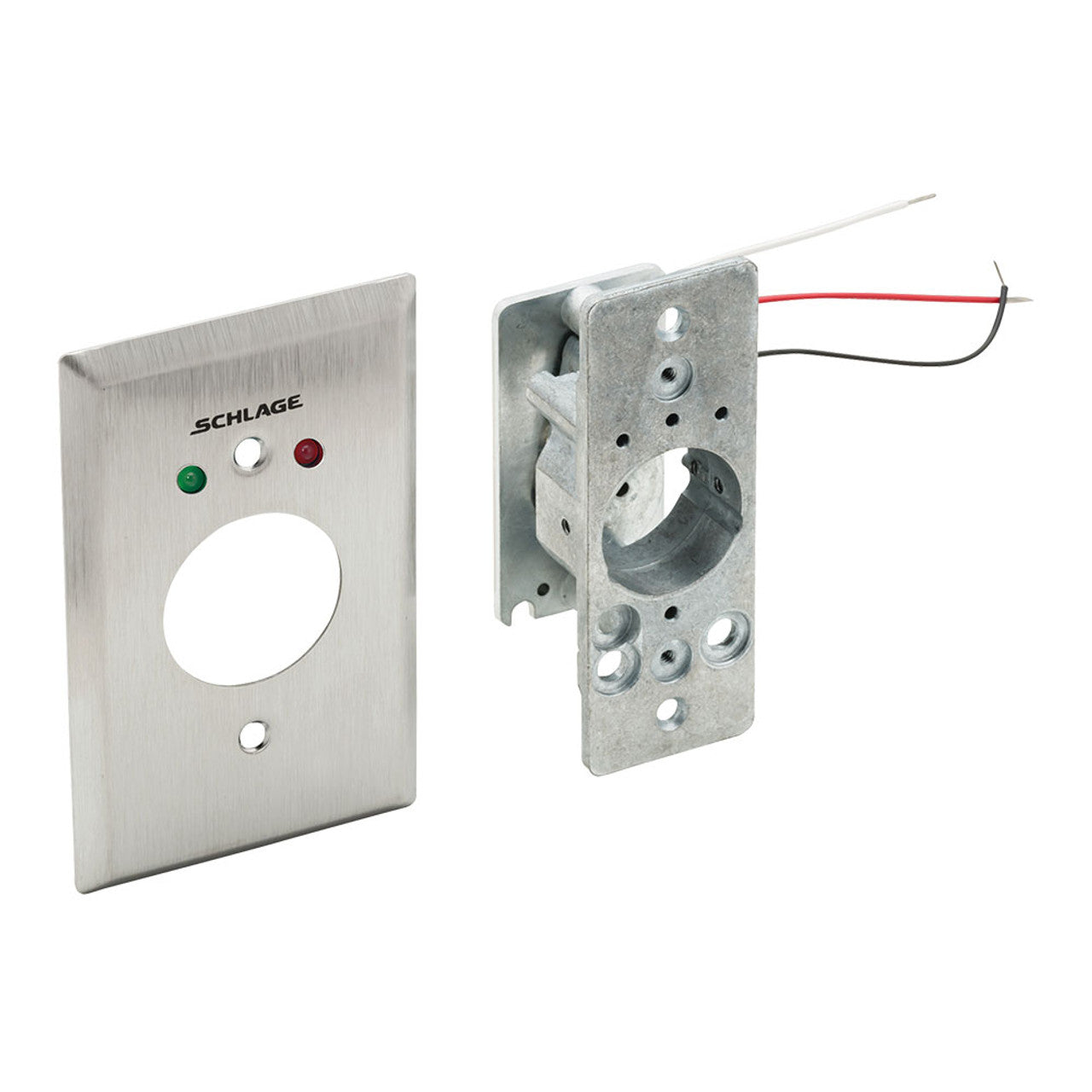

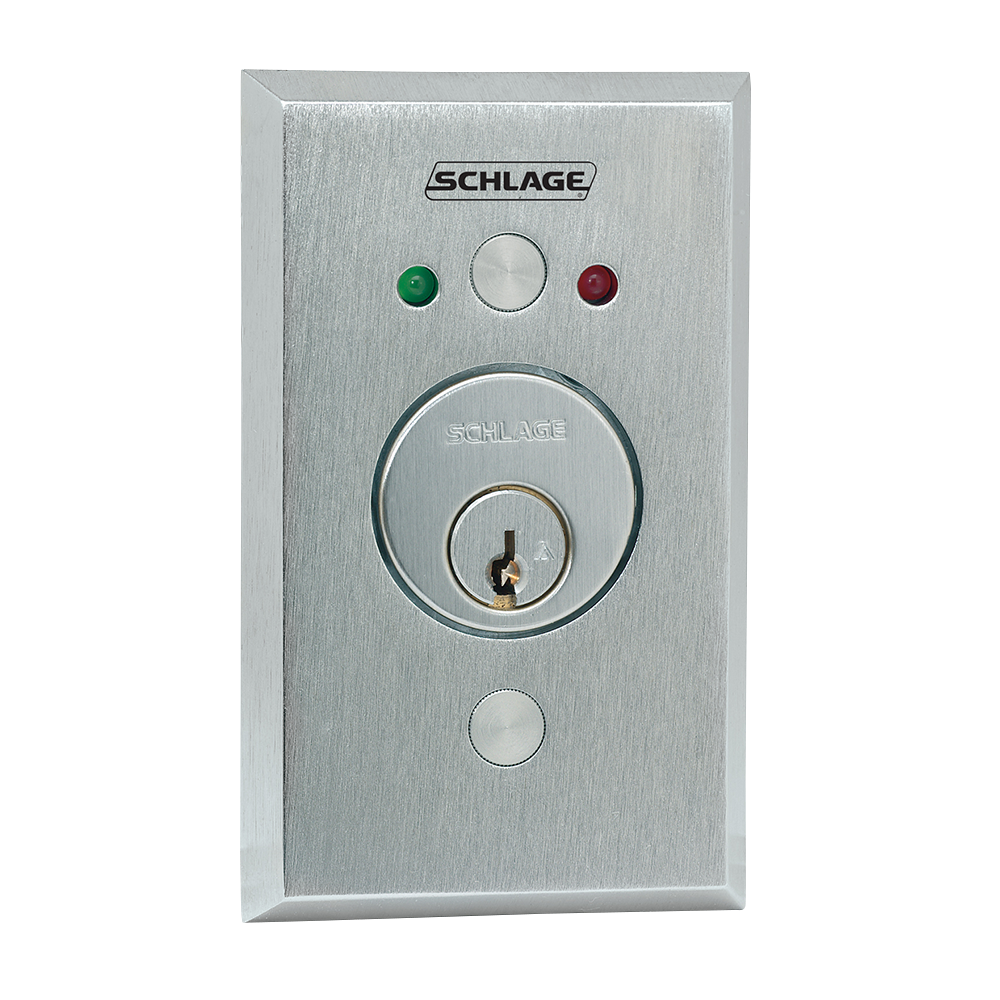

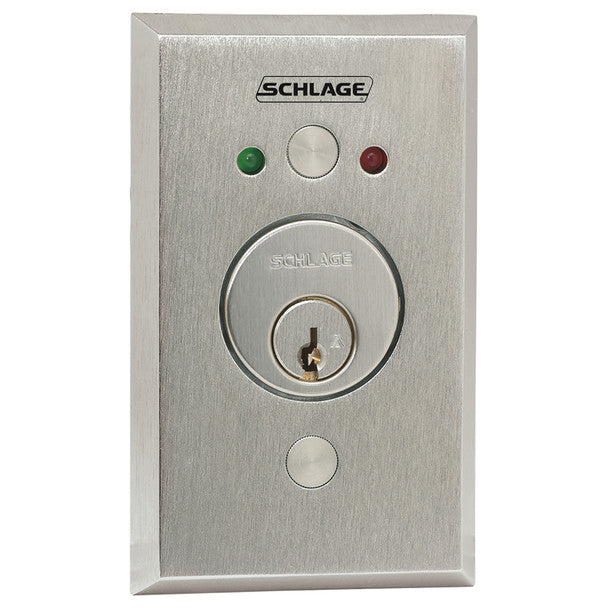

The Schlage Electronic Security 653-0405-L2 keyswitch activates with a key for momentary or maintained action. It features a magnetic spring design that enables clockwise or counterclockwise key turn configurations. This keyswitch is compatible with one and one-eighth to one and one-half inch cylinders, using a straight cam.

• Patented magnetic spring enables quick configuration for action type.
• Optional features include LED lights and anti-tamper switch.
• Weather-resistant cover available for added durability.

Product Highlights

This keyswitch is ideal for securing access points in commercial settings and integrates flexibility for various installation needs.

Product Information

Standard Information

• Type: Standard keyswitch
• Activation: Key-operated

Technical Specifications

• Contact Rating: 5 amp @ 30 VDC
• Contacts: SPDT contacts
• ATS Switch: Closes when cover is on 0.025A@28VDC
• LED Indicator Lights: Operate at 12/24 VDC 0.500A @ 30VDC
• Available Models: Multiple configurations available for specific needs
• Finish Options: Various finishes including satin stainless steel
• Optional Features: Two LEDs, anti-tamper switch, weather-resistant cover.
• Cylinder Size: Compatible with 1-1/4 inch Schlage Everest mortise cylinder
