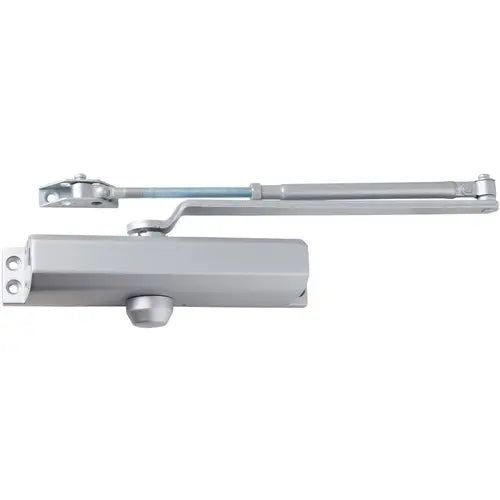

Schlage DCR8000-STD-LESS-RW/PA-ALUM Door Closer Size 1 to 4

Product Description

The Schlage DCR8000-STD-LESS-RW/PA-ALUM door closer is a Grade 1 surface closer designed for tri-mount installation. It can be mounted regularly, in parallel, or at the top jamb. This closer features a regular arm and adjustable backcheck, covering sizes one to four. With its aluminum finish, it is non-handed and ideal for various commercial applications.

• Grade 1 surface closer suitable for commercial use.
• Tri-mount installation options available for versatility.
• Adjustable spring sizes make it adaptable to different door requirements.

Product Highlights

This door closer meets rigorous standards to ensure dependable operation in commercial environments.

Product Information

Standard Information

• Mounting Style: Tri Mount
• Hand: Non-Handed

Technical Specifications

• Grade: ANSI/BHMA Grade 1
• Type: Surface
• Package Qty: 1
• Hold Open: Without Hold Open
• Mounting Location: Push or Pull Side
• Color Code: 689/US28
• Closer Size: 1-4
• Finish: Satin Aluminum
• Series: DCR8000 Series
• Spring Size: 1-4
• Function: RW/PA-Regular Arm w/PA Shoe
• Maximum Door Opening: 180 degrees
• ADA Compliant: YES
• Application: Commercial
• Standards: Grade 1 Compliant; UL 10C Listed
• Door Size: 2 feet 4 inches to 4 feet 6 inches (Interior); 2 feet 6 inches to 4 feet (Exterior)
• Door Thickness: 1-3/4 inches
• Product Material: Cast Aluminum
• Warranty: 5 year limited warranty
