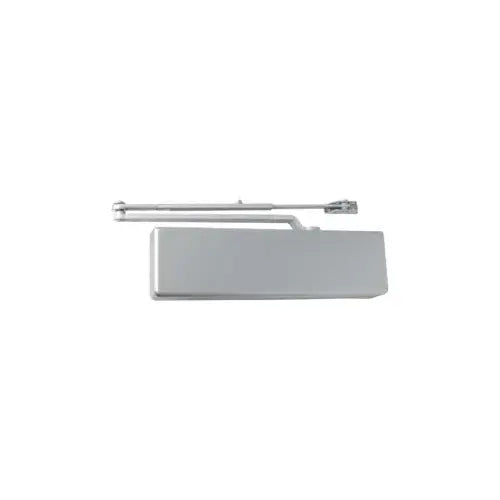

Schlage DCH1000-STD-FULL-RW/PA-ALUM Door Closer Size 1 to 6

Product Description

The Schlage DCH1000-STD-FULL-RW/PA-ALUM is a grade 1 surface door closer that supports tri-mount applications. It can be installed in regular, parallel, or top jamb configurations. This door closer uses a regular arm and features an adjustable backcheck. It is finished with aluminum paint and works for door sizes ranging from one to six.

• Grade 1 surface closer
• Tri mount capability
• Adjustable backcheck

Product Highlights

The Schlage DCH1000 offers reliable performance and flexibility for various mounting needs.

Product Information

Standard Information

• Brand: Schlage
• Type: Surface

Technical Specifications

• MPN: DCH1000-STD-FULL-RW/PA-ALUM
• JMAC ID: 200692557
• Grade: ANSI/BHMA Grade 1
• Mounting Style: Tri Mount
• Hand: Non-Handed
• Color: Aluminum Painted
• Closer Size: 1-6
• Mounting Location: Push or Pull Side
• Special Marks: Complies with ADA guidelines
• Finish: Aluminum Painted
• Spring Size: 1-6
• Function: RW/PA-Regular Arm
• Mounting Hole Size: 6-3/4 x 2-3/8 inches
• Maximum Door Opening: 180 degrees
• Door Thickness: 1-3/4 inches
• Product Material: Cast Aluminum
• Closer Arm Type: RW/PA
