Schlage cs210-b500-jd-sat-626-ply Interconnected Lever Lock

Product Description

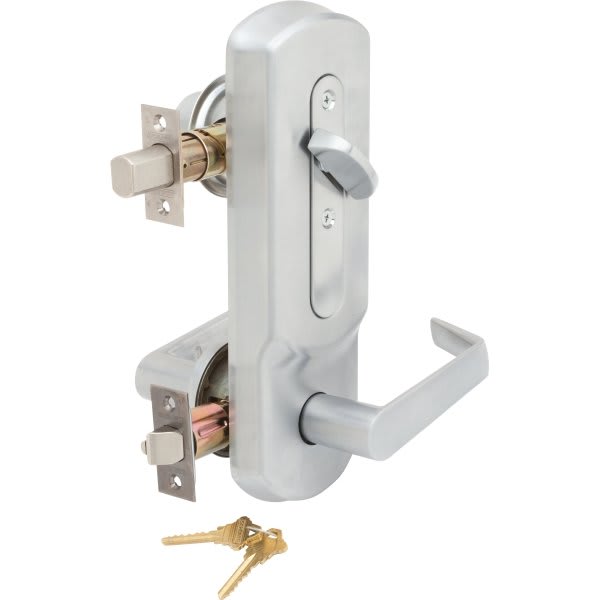

The SCHLAGE cs210-b500-jd-sat-626-ply is a Saturn-style interconnected lever lock finished in satin chrome. It combines a passage lever with a single cylinder deadbolt in one unit. Turning the interior lever retracts both the latch and the deadbolt simultaneously, allowing fast single-motion egress. The lock accepts a 2.375-inch or 2.75-inch backset and fits doors ranging from 1.375 to 2 inches thick. It carries an ANSI Grade 2 rating and is ADA compliant, making it appropriate for light commercial and multi-family residential applications. Licensed locksmiths, door hardware specialists, and commercial finish carpenters are the typical installers.

This interconnected lock is suited for light commercial corridors, apartment entry doors, and residential applications where a single-motion exit function is required by local code. The reversible design accommodates both right-hand and left-hand doors without additional hardware. Installation requires a 4-inch or 5.5-inch center bore spacing, so the door prep must be confirmed before ordering. The passage function with integrated deadbolt is commonly specified on egress-path doors in assisted living, hospitality, and multi-family construction projects.

Key Features

• Latch and deadbolt retract simultaneously with a single lever turn for single-motion egress
• Accepts 2.375-inch or 2.75-inch backset — field selectable
• Reversible hand: fits right-hand and left-hand doors without modification
• Fits doors 1.375 to 2 inches thick
• ADA compliant lever design
• Schlage C keyway cylinder for keying compatibility with existing Schlage C keyways
• Installs on 4-inch or 5.5-inch center bore layouts

Compatibility

Designed as an OEM-style interconnected lock replacement for light commercial and residential doors prepped to ANSI standard bore dimensions with 4-inch or 5.5-inch center spacing and a 2.375-inch or 2.75-inch backset.

Installation Notes

Installation is typically performed by a licensed locksmith or a qualified door hardware technician. Confirm door hand orientation, backset measurement, and center bore spacing before beginning installation. Ensure the door is fully supported and the existing bore prep matches the required dimensions before mounting the lock body. Consult local building codes, including applicable fire and life-safety egress requirements, to verify that an interconnected lock meets the code requirements for the specific door location.

Technical Specifications

• Finish: Satin Chrome (626)
• Backset: 2.375 inches or 2.75 inches
• Door Thickness: 1.375 to 2 inches
• Center Bore Spacing: 4 inches or 5.5 inches
• ANSI Grade: Grade 2
• Function: Passage with Single Cylinder Deadbolt
• Keyway: Schlage C
• Hand: Reversible
• ADA Compliant: Yes

Standard Information

• Brand: SCHLAGE
• Manufacturer Part Number: cs210-b500-jd-sat-626-ply
