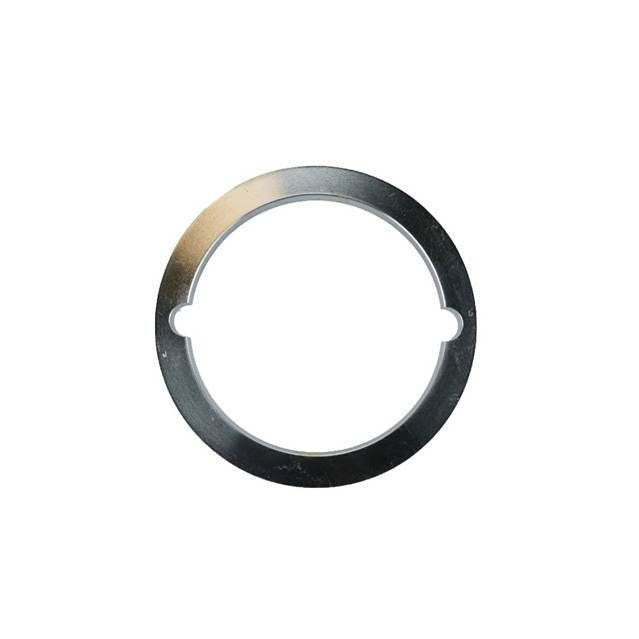

Schlage Commercial XN12012626 Nd Series Chassis Spacer

Product Description

The SCHLAGE COMMERCIAL XN12012626 is a chassis spacer designed for use with ND Series cylindrical locksets installed on doors with a 1-3/8 inch thickness. This component provides the necessary depth offset to ensure the lock chassis seats correctly within the door bore, maintaining proper alignment of trim, latch, and internal mechanism. Finished in Satin Chrome, it matches standard commercial hardware aesthetics. The spacer is sold individually and is installed by licensed locksmiths or commercial door hardware technicians during new installation or lockset service. At 0.2 pounds, it is a lightweight but precise-fit component.

This spacer is suited for commercial and institutional door applications where ND Series Schlage cylindrical hardware is specified. It is used when the door thickness requires a chassis extension to achieve proper lockset function. Typical install scenarios include hollow metal doors, wood doors, and aluminum-framed doors of 1-3/8 inch thickness in office, institutional, or multi-family settings. Facilities maintenance personnel and commercial door hardware installers will encounter this part during lockset replacement or retrofit projects.

Key Features

• Designed specifically for ND Series cylindrical lockset chassis on 1-3/8 inch doors
• Satin Chrome finish integrates with standard commercial hardware trim
• Compact profile at 3.45 x 3.45 x 0.2 inches for precise fitment within the door bore
• Lightweight at 0.2 pounds, simplifying handling during installation
• Sold individually, allowing single-unit replacement without overordering

Compatibility

Designed as an OEM-style replacement chassis spacer for Schlage ND Series cylindrical locksets installed on 1-3/8 inch thickness doors.

Installation Notes

Installation should be performed by a qualified locksmith or commercial door hardware technician. Disengage all latch and lock mechanisms and remove the existing lockset trim before replacing or adding the chassis spacer. Verify door thickness measurement before ordering to confirm correct spacer specification. Follow applicable building code requirements and hardware manufacturer guidelines when servicing commercial access hardware.
