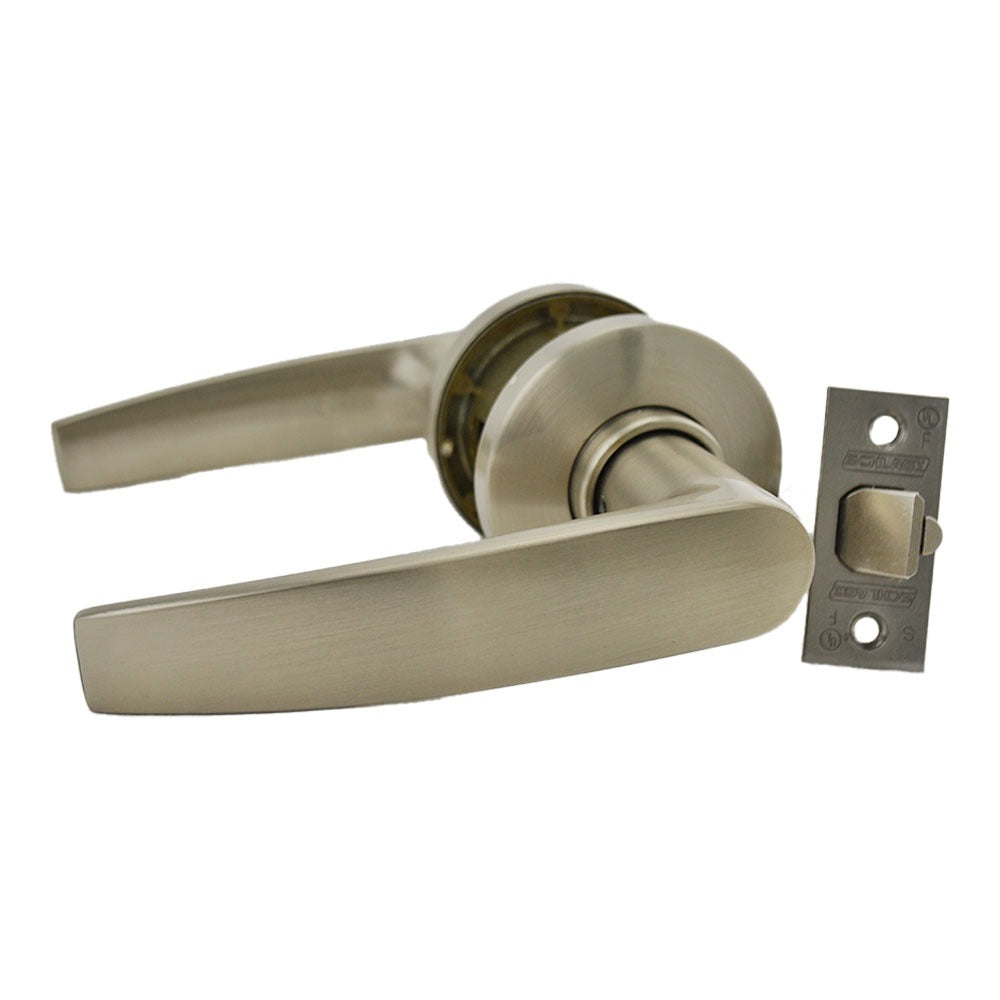

Schlage Commercial S80PJUP619 Storeroom Lock Satin Nickel

Product Description

The SCHLAGE COMMERCIAL S80PJUP619 is an S Series storeroom cylindrical lock built for commercial and institutional door hardware applications. It features a C keyway with Jupiter trim styling and ships complete with a 16-203 latch and 10-001 strike plate, making it a ready-to-install assembly. The satin nickel (619) finish provides corrosion resistance suited to high-traffic environments. A storeroom function means the outside lever is always locked and can only be operated by key, while the inside lever remains free-turning at all times. Licensed locksmiths, commercial door hardware installers, and facilities maintenance crews are the typical trades handling this hardware.

This lock is intended for commercial, institutional, and multi-family building applications where storeroom or storage-area security is required. The storeroom function is commonly specified for supply rooms, server closets, storage areas, and similar spaces where entry must be key-controlled at all times. The included latch and strike are matched components, reducing the need to source hardware separately. The Jupiter trim profile is a standard commercial lever style that meets typical commercial door prep requirements for cylindrical lock chassis.

Key Features

• Storeroom function: outside lever locked at all times, key entry only, inside lever always free
• C keyway configuration supports standard commercial keying systems including key-differ (KD) setups
• Jupiter trim lever style on S Series cylindrical chassis
• Includes 16-203 latch and 10-001 strike plate for complete door prep installation
• Satin nickel (619) finish for durability in commercial environments
• Sold as a single unit (EA); packaged 6 units per case

Compatibility

Designed as an OEM-style cylindrical storeroom lock for standard commercial door preparations accepting an S Series cylindrical lock chassis with C keyway.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with cylindrical lock chassis procedures. Verify the door prep backset, bore diameter, and edge bore dimensions match the lock chassis specifications before installation. Ensure the door is secured open and all related access control or alarm connections are accounted for prior to beginning work. Follow applicable local building codes and fire-rated door assembly requirements when installing hardware on rated openings.
