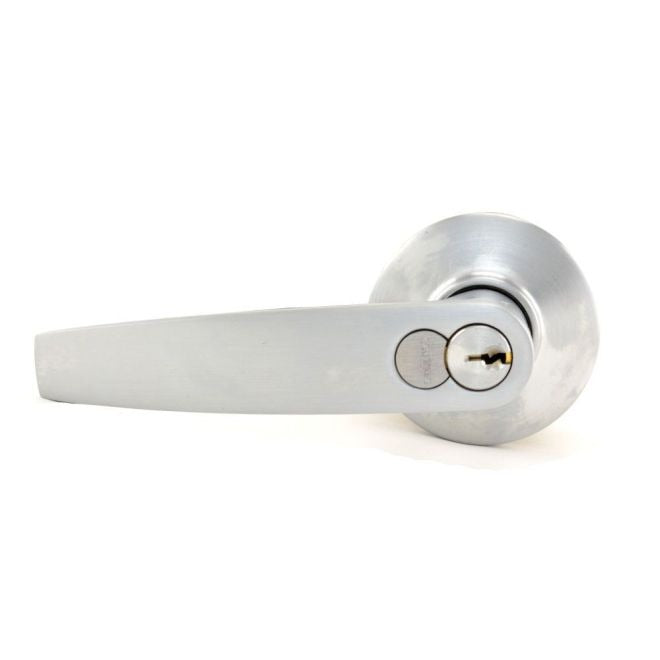

Schlage Commercial S51RJUP626 Entry Lockset Satin Chrome

Product Description

The SCHLAGE COMMERCIAL S51RJUP626 is an S Series entry lockset designed for commercial and institutional door applications. It features a C keyway keyed-different (KD) cylinder in a large format configuration with a Jupiter trim style. The lockset ships with a 16-203 latch and 10-001 strike plate, making it a complete hardware set ready for installation. The satin chrome (626) finish provides a clean, professional appearance suited to high-traffic commercial environments. Licensed locksmiths, commercial door hardware installers, and general contractors typically specify and install this unit.

This lockset is intended for commercial and institutional buildings where entry-function hardware is required. The large format interchangeable core (LFIC) design accommodates C keyway cylinders, making it compatible with master key systems commonly used in schools, office buildings, healthcare facilities, and multi-tenant commercial properties. The keyed-different configuration is standard for single-door or non-keyed-alike applications. The Jupiter rosette and lever trim provide a straightforward, ADA-compatible profile appropriate for most commercial door preparations.

Key Features

• S Series entry function — locked outside, always free on the inside
• Large format C keyway keyed-different cylinder for master key system compatibility
• Jupiter trim style with satin chrome (626) finish
• Includes 16-203 latch and 10-001 strike plate for a complete installation package
• Designed for commercial and institutional door applications

Compatibility

Designed as an OEM-style commercial entry lockset for standard commercial door preparations accepting S Series large format cylindrical hardware with C keyway cylinders.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware installer familiar with ANSI door prep standards. Verify door thickness, backset, and bore dimensions before installation, and ensure the door is in a de-energized or non-secured state during fitting. The strike plate must be mortised flush into the door frame jamb for proper latch engagement. Consult applicable local building codes for accessibility and egress requirements before finalizing hardware selection.
