Schlage Commercial ND96JSPA626 Vandlgard Storeroom Lockset

Product Description

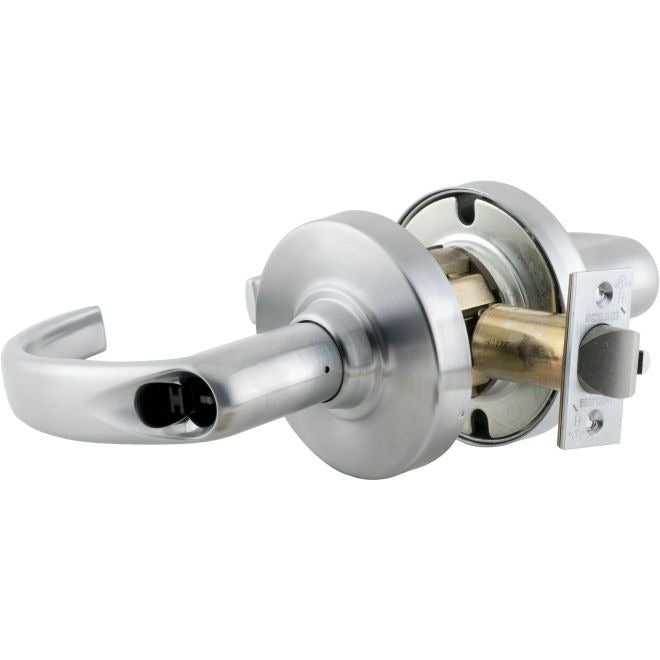

The SCHLAGE COMMERCIAL ND96JSPA626 is an ND Series Vandlgard storeroom lockset configured for large format less core (LFLC) applications with the Sparta trim design and a 626 satin chrome finish. This heavy-duty cylindrical lockset is built for commercial and institutional doors where storeroom function is required: the outside lever is always locked and can only be operated by key, while the inside lever provides free egress at all times. It ships with a 13-247 latch and a 10-025 strike, making it a complete, ready-to-install assembly. Licensed locksmiths, security contractors, and commercial door hardware installers are the primary trades for this product.

This lockset is suited for storeroom, storage, and utility door applications in commercial, institutional, and multi-family buildings. The large format less core configuration accepts a wide range of interchangeable core cylinders from compatible manufacturers, allowing facilities using LFLC keying systems to integrate this lockset into an existing master key program without retooling the lever body. The Sparta lever style is a standard commercial lever profile appropriate for ADA-compliant lever sets when paired with correct hardware. Included hardware components are the 13-247 latch and the 10-025 strike.

Key Features

• Storeroom function: outside lever fixed, inside lever always free for egress
• Large format less core (LFLC) cylinder configuration for interchangeable core keying systems
• Sparta lever trim design in 626 satin chrome finish
• Includes 13-247 latch and 10-025 strike for complete installation
• ND Series cylindrical lockset construction for commercial-grade durability
• Vandlgard feature provides resistance to lever torque attacks

Compatibility

Designed for commercial and institutional doors requiring storeroom function with a large format less core cylinder. Compatible with large format interchangeable core cylinders from manufacturers whose cores fit the ND Series chassis. Includes 13-247 latch and 10-025 strike as specified in the product configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with cylindrical lockset procedures. Ensure the door is properly prepped to ANSI/BHMA standard bore dimensions before installation. Verify latch backset and strike alignment with the door frame before final fastening. The core is not included and must be ordered separately to complete the lockset for keyed operation.
