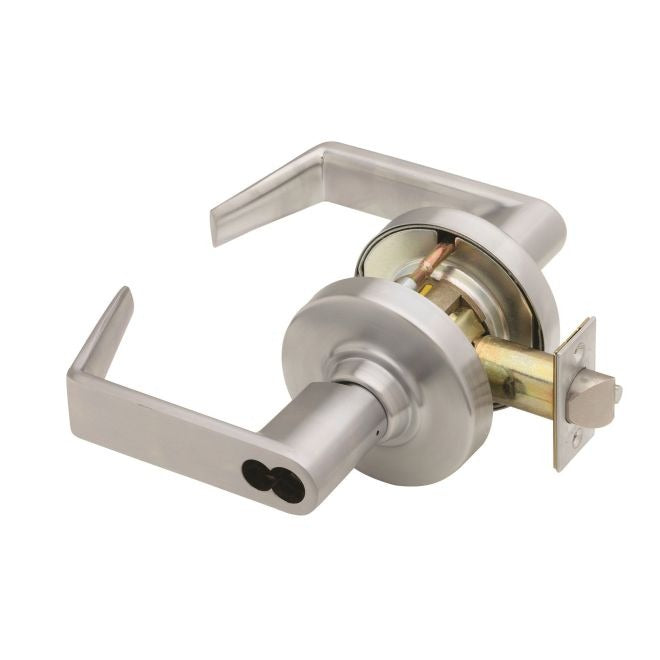

Schlage Commercial ND92JRHO626 Nd Series Entry Lever

Product Description

The SCHLAGE COMMERCIAL ND92JRHO626 is a heavy-duty Vandlgard entry lever lock from the ND Series, designed for large format less core (LFLC) applications in commercial and institutional environments. Built with a satin chrome (626) finish, this cylindrical lever lock ships complete with a 13-247 latch and a 10-025 strike plate, making it a ready-to-install assembly for doors requiring robust access control. The Vandlgard design incorporates a clutching mechanism that resists forced rotation and torque attacks, a critical feature for high-traffic or security-sensitive openings. Installation and specification work are handled by licensed locksmiths, architectural hardware consultants, or commercial door hardware contractors.

The ND92JRHO626 is suited for commercial, institutional, and multi-family building applications where entry function hardware is required. The large format less core configuration accepts a wide range of interchangeable cores, giving facility managers flexibility in key control systems. The Rhodes lever trim provides a clean, professional appearance appropriate for office corridors, institutional hallways, and commercial entry points. This lock is intended for full-height door assemblies in applications governed by building codes requiring commercial-grade cylindrical locksets.

Key Features

• Vandlgard clutching mechanism resists forced rotation and torque attacks on the lever
• Large format less core (LFLC) design accepts interchangeable cores for flexible key control
• Includes 13-247 latch and 10-025 strike plate for a complete installation assembly
• Satin chrome (626) finish for durable, low-maintenance appearance in commercial settings
• Rhodes lever trim style suited for institutional and commercial door openings
• Entry function: exterior lever locked or unlocked by key; interior lever always free

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical lever lock for commercial and institutional doors requiring ND Series large format less core Vandlgard entry hardware.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with cylindrical lock preparation and ANSI/BHMA standards. Confirm door prep, backset, and cross-bore dimensions match the lock specifications before installation. Disengage all power-operated door hardware and secure the door in a safe position before beginning work. Do not overtighten the through-bolts, as this can distort the lock chassis and affect clutch performance.
