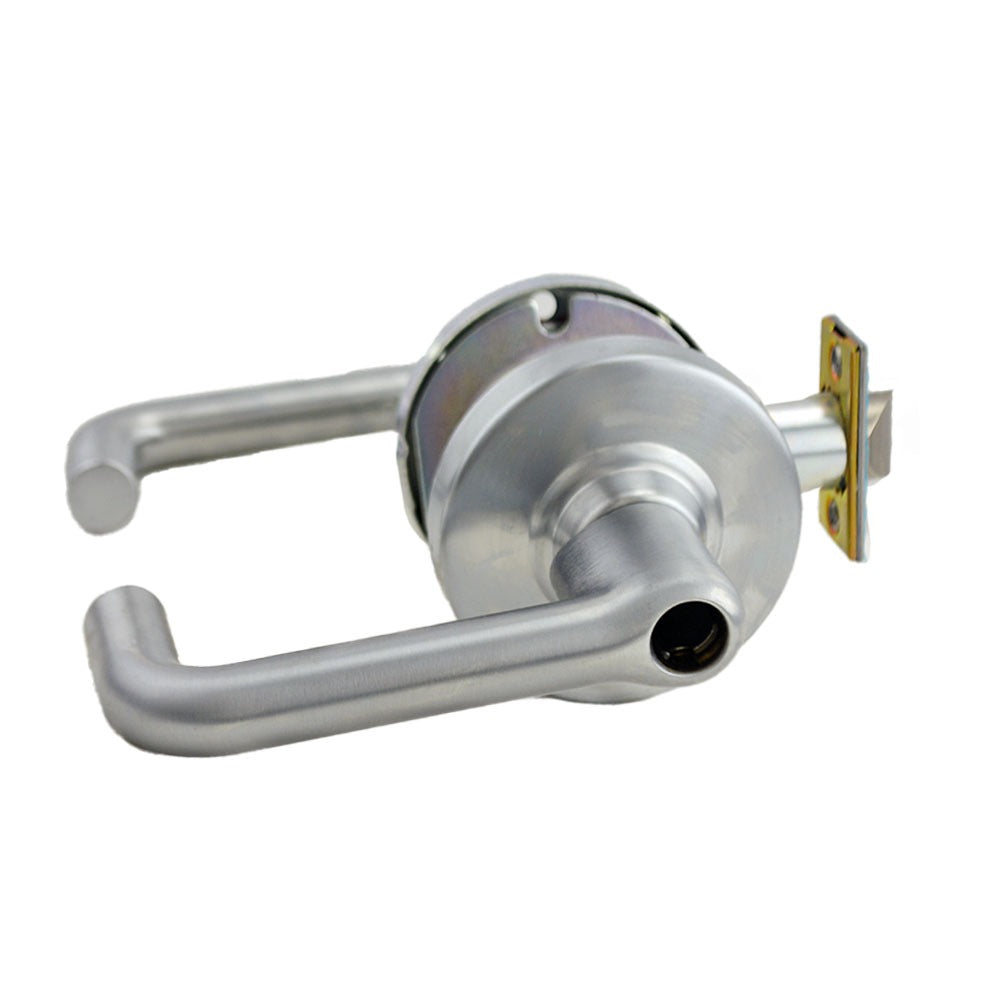

Schlage Commercial ND80LTLR626 Storeroom Tubular Lockset

Product Description

The SCHLAGE COMMERCIAL ND80LTLR626 is an ND Series storeroom tubular lockset designed for commercial and institutional door hardware applications. It ships less cylinder, meaning the installer supplies the cylinder separately, and includes a 13-247 latch and a 10-025 strike. The satin chrome (626) finish provides corrosion resistance suited to high-traffic environments. At 5.3 pounds, the unit is built for heavy-duty commercial use. Licensed locksmiths, commercial door hardware installers, and facilities maintenance technicians are the primary trades who specify and install this hardware.

The ND80LTLR626 is suited for storeroom function applications in commercial buildings, institutional facilities, schools, and multi-family properties. Storeroom function means the outside lever is always locked and can only be opened by key, while the inside lever remains free egress. This makes it appropriate for supply rooms, server rooms, storage areas, and similar controlled-access spaces. No specific model or system compatibility beyond the ND Series is stated in available product data.

Key Features

• Storeroom function: outside lever locked at all times, inside lever always free for egress
• Ships less cylinder — installer provides separate cylinder to match keying system
• Includes 13-247 latch and 10-025 strike for a complete door prep package
• Satin chrome (626) finish for durability in high-traffic commercial environments
• ND Series tubular chassis construction suited for heavy-duty commercial door applications

Compatibility

Designed as an OEM-style commercial tubular lockset within the SCHLAGE COMMERCIAL ND Series platform. No additional specific compatible model numbers or system families are stated in available product data.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI/BHMA standards. Confirm door prep dimensions and backset before installation. The unit ships less cylinder — select and install a compatible cylinder to complete the lockset before the door is put into service. Always verify that egress and fire-rating requirements for the opening are met prior to final installation.
