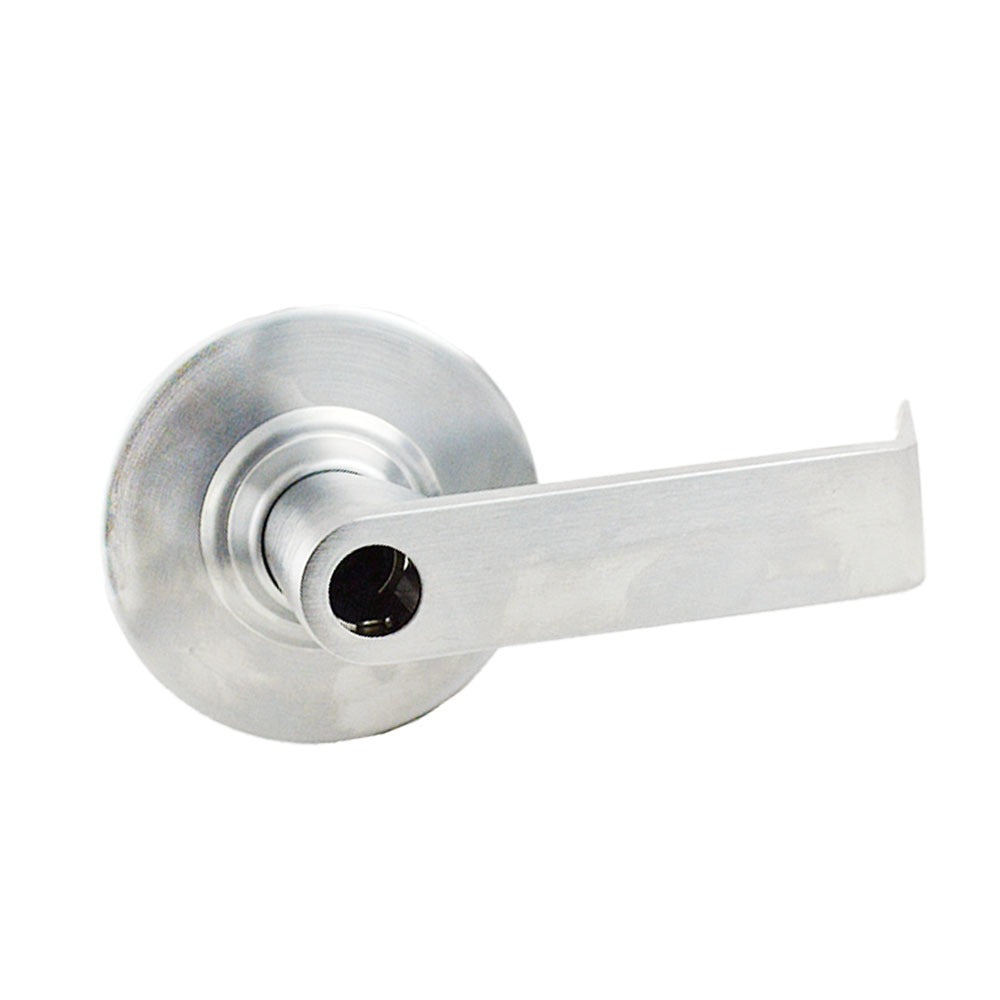

Schlage Commercial ND80LRHO626 Storeroom Lever Lockset

Product Description

The SCHLAGE COMMERCIAL ND80LRHO626 is a storeroom-function lever lockset from the ND Series, designed for commercial and institutional door hardware applications. It ships less cylinder, meaning field installation requires a separate compatible cylinder to complete the locking mechanism. The Rhodes trim style provides a classic lever profile suited to a wide range of commercial door preparations. The satin chrome finish (626) delivers corrosion resistance and a clean, professional appearance on hollow metal and wood doors. This lockset includes a 13-247 latch and 10-025 strike plate, providing a complete trim-ready hardware set for the door prep. Installation is performed by licensed locksmiths or commercial door hardware technicians.

The ND80LRHO626 is suited for storeroom applications where the outside lever is always locked and can only be unlocked by key, while the inside lever allows free egress at all times. This function is common in commercial storage rooms, server rooms, supply closets, and similar spaces in office, institutional, and light industrial buildings. The unit is sold individually and is also available in case quantities of 6 units for larger commercial projects.

Key Features

• Storeroom function: outside lever fixed, inside lever always free for egress
• Less cylinder configuration allows field selection of compatible cylinder core
• Rhodes lever trim style with satin chrome (626) finish
• Includes 13-247 latch and 10-025 strike for complete door prep installation
• ND Series heavy-duty commercial grade construction
• Sold as individual unit; case quantity of 6 available

Compatibility

Designed as a commercial-grade storeroom lockset compatible with standard ANSI A115 door preparations. Accepts compatible Schlage ND Series cylinders sold separately. Refer to Schlage ND Series specification sheets for door thickness range, handing requirements, and compatible cylinder options.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware professional. Before servicing or replacing any lockset, confirm the door is not in a fire-rated or life-safety egress path that may require specific hardware ratings per applicable building codes. The less-cylinder configuration requires a separate cylinder to be specified and installed before the lock is operational. Verify door prep dimensions and backset against manufacturer specifications prior to installation.
