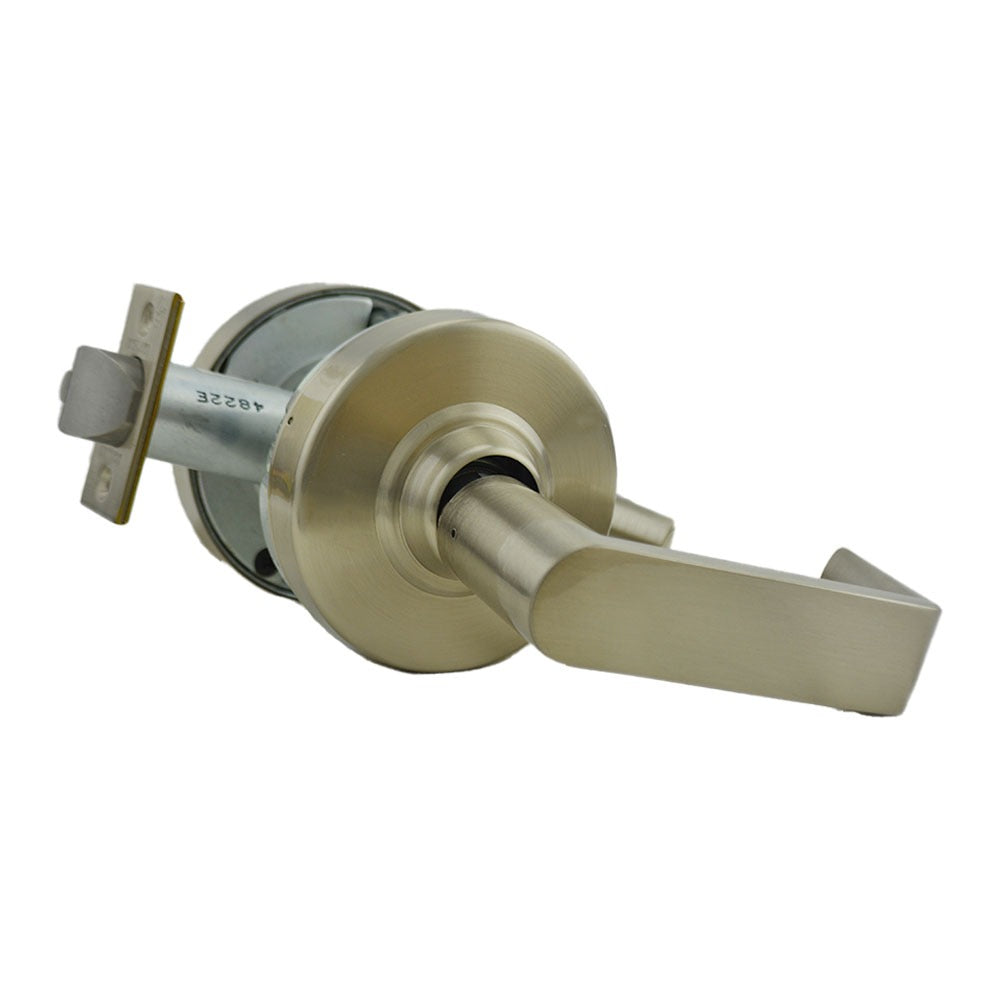

Schlage Commercial ND80LRHO619 Storeroom Lockset Satin Nickel

Product Description

The SCHLAGE COMMERCIAL ND80LRHO619 is a storeroom-function lockset from the ND Series, finished in satin nickel (619) and fitted with the Rhodes lever trim. Classified as less cylinder, this lockset ships without a core installed, making it suitable for facilities using interchangeable or proprietary core systems. The storeroom function keeps the latch deadlocked at all times from the outside and requires a credential to enter, while the inside lever always allows free egress. Included in the package are a 13-247 latch and a 10-025 strike plate. This hardware is specified and installed by licensed locksmiths and commercial door hardware professionals.

The ND80LRHO619 is designed for commercial and institutional storeroom applications where controlled, one-way access is required. Typical installations include supply rooms, server closets, pharmacy storage, and similar secured interior or exterior openings in commercial buildings. The ND Series platform supports a wide range of core options, allowing facilities managers and security consultants to integrate this lockset into existing key control programs. The Rhodes lever style meets ADA-compliant lever requirements in most jurisdictions when installed per manufacturer guidelines.

Key Features

• Storeroom function: outside lever always locked, inside lever always free for egress
• Less cylinder configuration accepts standard interchangeable or proprietary cores
• Rhodes lever design compatible with ADA lever requirements in applicable installations
• Satin nickel (619) finish for corrosion resistance in commercial environments
• Includes 13-247 latch and 10-025 strike plate for complete door prep
• ND Series heavy-duty chassis rated for high-cycle commercial door applications

Compatibility

Designed as an OEM-matched replacement or new-installation lockset within the Schlage Commercial ND Series platform. Accepts standard large-format interchangeable cores (LFIC) and small-format interchangeable cores (SFIC) as well as Schlage standard cores where applicable. Consult the ND Series specification sheet to confirm backset, door thickness, and handing requirements for the specific opening.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware installer familiar with ANSI/BHMA standards for Grade 1 cylindrical locksets. Verify door thickness, backset dimension, and bore preparation against ND Series template requirements before installation. Ensure the door and frame are properly aligned and that the strike plate is mortised flush before final hardware mounting. The less cylinder configuration requires a separately ordered core to complete the locking function before the opening is placed into service.
