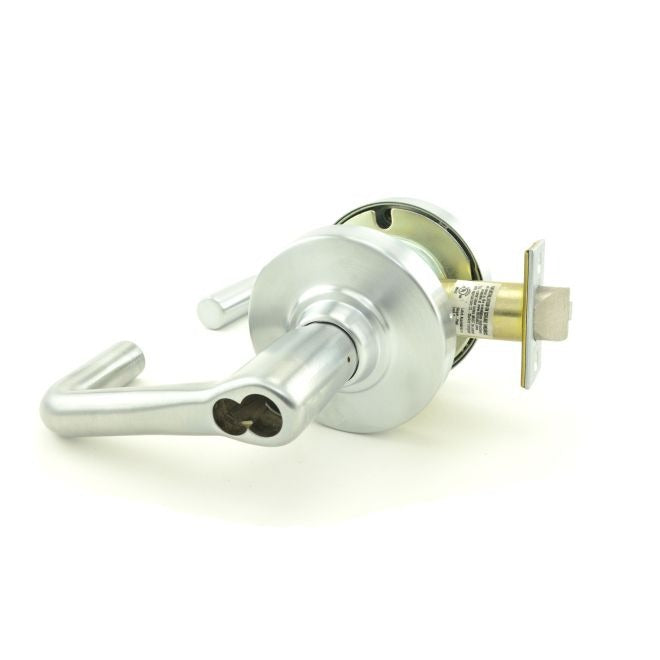

Schlage Commercial ND80JTLR626 Storeroom Tubular Lockset

Product Description

The SCHLAGE COMMERCIAL ND80JTLR626 is a storeroom-function tubular lockset in the ND Series, configured as a Large Format Less Core (LFLC) unit for use with interchangeable core cylinder systems. It ships with a 13-247 latch and a 10-025 strike, providing a complete, ready-to-install hardware set. The satin chrome finish (626) delivers a clean, low-maintenance appearance suited to high-traffic commercial and institutional environments. Storeroom function means the exterior lever is always locked and can only be retracted by key, while the interior lever remains free-egress at all times. This lockset weighs 5.33 pounds and is sold individually.

The ND80JTLR626 is intended for commercial and institutional interior doors requiring controlled storeroom access, such as supply rooms, server rooms, utility closets, and restricted-access areas in offices, schools, hospitals, and government facilities. The LFLC configuration allows the facility to specify its own large-format interchangeable core, supporting key-control programs from compatible core manufacturers. The included 13-247 latch and 10-025 strike are factory-matched to the lockset for straightforward installation on standard cylindrical door preps.

Key Features

• Storeroom function: exterior lever permanently locked, interior lever always free for egress
• Large Format Less Core (LFLC) design accepts compatible large-format interchangeable cores
• Includes 13-247 latch and 10-025 strike for a complete hardware set
• 626 satin chrome finish resists tarnish in high-traffic commercial use
• ND Series commercial-grade tubular construction for heavy-duty door applications
• Sold individually; case quantity of 6 available for larger projects

Compatibility

Designed as an OEM-style replacement or new-installation lockset for commercial and institutional doors with standard cylindrical (tubular) door preps compatible with the ND Series platform. Accepts large-format interchangeable cores from compatible manufacturers; core is not included.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with cylindrical lockset preps and interchangeable core systems. Verify door prep dimensions, backset, and cross-bore size match the lockset specifications before beginning installation. The interchangeable core must be sourced and installed separately; do not operate the lockset without the core properly seated. Follow applicable local building codes and fire-rated door hardware requirements when installing on rated assemblies.
