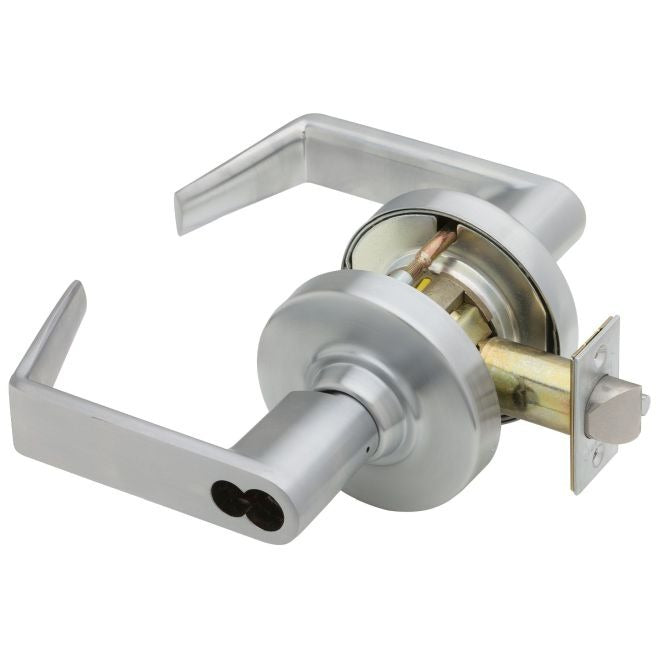

Schlage Commercial ND80JRHO626 Storeroom Lever Satin Chrome

Product Description

The SCHLAGE COMMERCIAL ND80JRHO626 is an ND Series storeroom lever lockset configured for large format less core (LFLC) applications. It ships with a 13-247 latch and 10-025 strike and is finished in satin chrome (626). The storeroom function keeps the latch retracted from outside at all times except when unlocked with a key, making it a standard choice for storage rooms, server rooms, and similar controlled-access spaces. The Rhodes lever trim provides a clean, institutional aesthetic suitable for commercial and light institutional installations. Locksmiths and commercial door hardware installers are the typical trades for this product.

This lockset is designed for commercial and institutional interior doors where storeroom-function hardware is required. The large format less core configuration means the cylinder core is not included, allowing facility managers and contractors to specify their own interchangeable core from a compatible LFLC system. The included 13-247 latch and 10-025 strike simplify the rough-in and reduce the need for separately sourced hardware on standard door prep.

Key Features

• Storeroom function: outside lever is always locked, entry by key only, inside lever always free egress
• Large format less core (LFLC) configuration accepts a separately specified interchangeable core
• Rhodes lever trim in satin chrome (626) finish for a consistent commercial appearance
• Includes 13-247 latch and 10-025 strike for a complete door prep installation
• ND Series platform designed for high-cycle commercial door applications

Compatibility

Designed for use with large format less core (LFLC) interchangeable core systems. The lockset fits standard commercial door prep. Core must be ordered separately and is not included.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI door prep standards. Verify door thickness and backset dimensions before ordering. Ensure all power to any associated access control or electric strike hardware is disconnected before beginning work. Do not force the lever or core during installation, as this can damage the chassis or cam mechanism.
