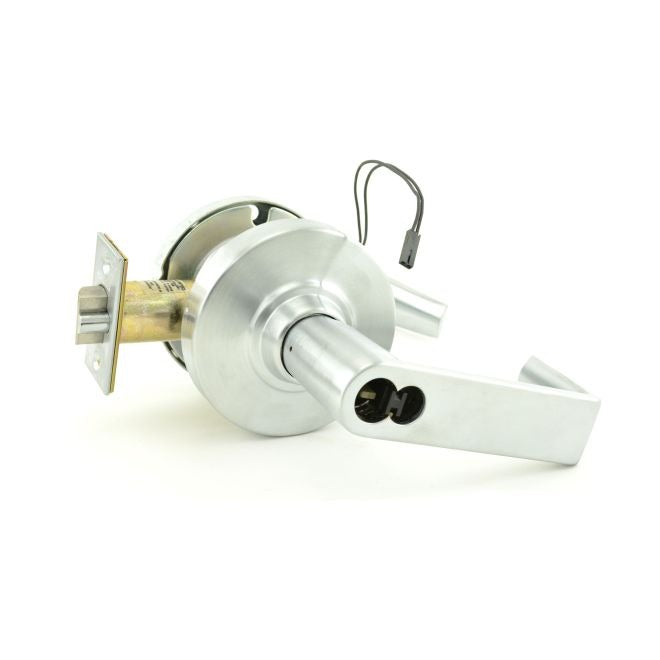

Schlage Commercial ND80JELEURHO626 Storeroom Lock

Product Description

The SCHLAGE COMMERCIAL ND80JELEURHO626 is a storeroom-function cylindrical lock from the ND Series, designed for electrically locked or unlocked operation in commercial and institutional applications. It features a Large Format Less Core (LFLC) cylinder housing, meaning the lock ships without a core installed, allowing facilities to use their existing large-format interchangeable core program. The Rhodes lever trim provides a clean, institutional aesthetic, and the Satin Chrome finish offers corrosion resistance in high-traffic environments. The unit ships with a 13-247 latch and a 10-025 strike, along with CON connectors for low-voltage wiring integration.

This lock is suited for storeroom, server room, or secured-access doors in commercial, institutional, and multi-family buildings where electric access control is required. The storeroom function keeps the exterior lever locked at all times by default; access is granted only by credential or electrical signal, while the interior lever remains free for egress. Installers integrating this lock into an access control system will use the included CON connectors to tie into the access control panel. It is sold as a single unit.

Key Features

• Storeroom function: exterior lever locked at all times, interior lever always free for egress
• Electrically locked or unlocked operation for integration with access control systems
• Large Format Less Core (LFLC) design accepts facility-supplied large-format interchangeable cores
• Rhodes lever trim in Satin Chrome finish for institutional aesthetics and durability
• Includes 13-247 latch and 10-025 strike for complete door prep
• CON connectors included for low-voltage wiring to access control hardware

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical lock for commercial and institutional doors compatible with the Schlage ND Series platform using Large Format Less Core cylinder housings.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI and BHMA standards for cylindrical locksets. Disconnect and lock out any access control panel power before wiring the CON connectors to avoid unintended electrical actuation. Verify door prep dimensions, backset, and cross-bore diameter before mounting to ensure proper latch and strike alignment. All electrical wiring must comply with applicable NEC requirements for low-voltage access control circuits.
