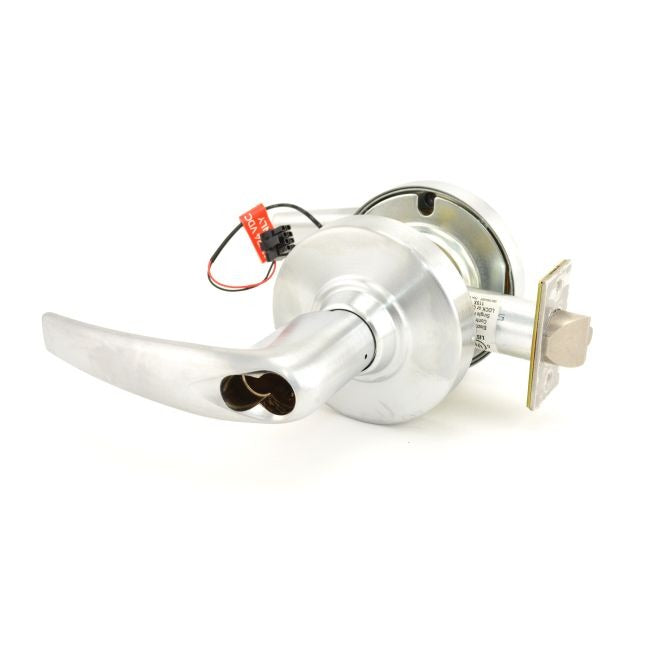

Schlage Commercial ND80JELEUATH626 Storeroom Lever Athens

Product Description

The SCHLAGE COMMERCIAL ND80JELEUATH626 is a storeroom-function cylindrical lever lockset in the ND Series, designed for electrically locked or unlocked operation in large format less core (LFLC) applications. The Athens lever trim is finished in satin chrome (626). This unit ships with a 13-247 latch and 10-025 strike and includes CON connectors for low-voltage wiring integration. It is installed by licensed commercial locksmiths or qualified door hardware technicians on interior and exterior commercial doors requiring electrified storeroom control. The lockset weighs 4.8 pounds and measures 9.4 inches in length, 8.1 inches in width, and 4.6 inches in height.

The ND80JELEUATH626 is suited for commercial, institutional, and multi-family facilities where storeroom access control is required. The storeroom function keeps the door locked from the outside at all times, with egress available from the interior at any time. The electrified option allows the latch to be released or secured remotely via access control system signal. Large format less core configuration accepts a variety of interchangeable cores, making it adaptable to facilities running a masterkey or access control program.

Key Features

• Storeroom function: outside lever always locked, free egress from inside
• Electrically locked or unlocked operation for remote access control integration
• Large format less core (LFLC) design accepts interchangeable core cylinders
• Includes 13-247 latch and 10-025 strike
• CON connectors included for low-voltage wiring to access control panel
• Athens lever trim in satin chrome (626) finish

Compatibility

Designed as an OEM-style cylindrical lockset replacement or new installation for commercial doors requiring ND Series storeroom function with electrified operation and large format less core configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with electrified hardware and applicable building codes. Disconnect or de-energize the access control circuit before making low-voltage wiring connections at the CON connectors. Verify door prep dimensions and backset before installation to confirm latch and strike compatibility. Confirm the interchangeable core is sourced and keyed separately, as this unit ships less core.
