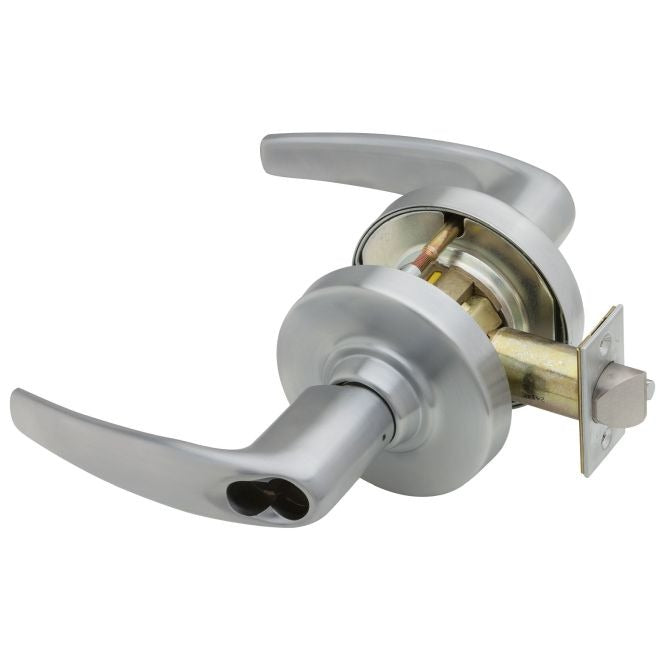

Schlage Commercial ND80JATH626 Storeroom Lever Satin Chrome

Product Description

The SCHLAGE COMMERCIAL ND80JATH626 is a storeroom-function lever lockset from the ND Series, finished in satin chrome (626). It is a large format less core (LFIC) design, meaning the lock cylinder is ordered and installed separately, allowing facilities to use their existing large format interchangeable core system. The lockset ships with a 13-247 latch and a 10-025 strike plate. The Athens lever trim style provides a clean, institutional profile suited to commercial and institutional door hardware programs. Installation is handled by licensed locksmiths or commercial door hardware technicians.

The ND80JATH626 is intended for storeroom or closet applications where the outside lever is always locked and the inside lever always free. This function is standard in commercial buildings, schools, healthcare facilities, and institutional environments where controlled access to storage or utility spaces is required. The large format less core configuration makes it well suited for master keying programs that use large format interchangeable cores across a facility.

Key Features

• Storeroom function: outside lever is always locked, inside lever always free egress
• Large format less core (LFIC) design accepts a separately ordered interchangeable core
• Athens lever trim style with satin chrome (626) finish
• Includes 13-247 latch and 10-025 strike plate
• ND Series heavy-duty commercial grade construction
• Sold as a single unit; case quantity of 6 available

Compatibility

Designed for use with large format interchangeable core cylinders in commercial and institutional door hardware applications. Core is not included and must be ordered separately to match the facility keying system.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI/BHMA standards. Verify door prep dimensions and backset before installation to ensure the latch and trim align correctly. Confirm the interchangeable core selected is compatible with this LFIC chassis before ordering. Always test lockset function and verify proper latch engagement before returning the door to service.
