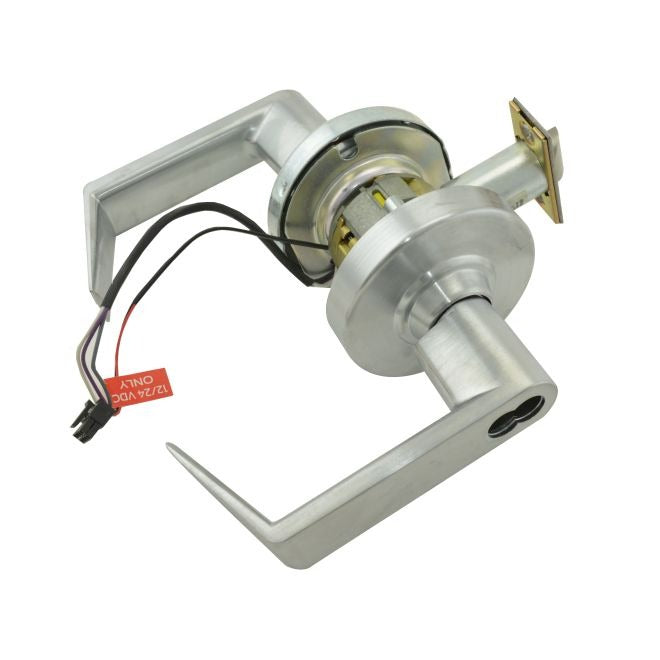

Schlage Commercial ND80BELEURHO626RX Storeroom Lock Satin Chrome

Product Description

The SCHLAGE COMMERCIAL ND80BELEURHO626RX is an ND Series storeroom lever lock with electric locking and unlocking capability, designed for commercial and institutional door hardware applications. This lock operates as a storeroom function, meaning the exterior lever is always locked and can only be operated by key or electrical signal. The integrated RX switch provides real-time door position or request-to-exit monitoring, making it suitable for access control integration. It ships in a small format, less-core configuration, requiring a separate interchangeable core. The Rhodes lever trim and satin chrome (626) finish deliver a clean, professional appearance suited to high-traffic corridors and secured areas.

This lock is intended for commercial and institutional buildings where electrically controlled storeroom access is required, such as server rooms, pharmacies, supply closets, restricted offices, and similar controlled-entry spaces. Licensed commercial door hardware specialists and access control integrators are the typical installers. The unit includes a 13-247 latch and 10-025 strike, providing a ready-to-install hardware set for standard commercial door preparations. It is sold as an individual unit.

Key Features

• Storeroom function: exterior lever always locked, controlled by key or electrical signal
• Electric locking and unlocking capability for access control system integration
• Integrated RX switch for door position monitoring or request-to-exit signaling
• Small format, less-core (SFIC-ready) cylinder for interchangeable core systems
• Includes 13-247 latch and 10-025 strike for complete door hardware installation
• Satin chrome (626) finish on Rhodes lever trim

Compatibility

Designed for use in the ND Series platform in a small format less-core configuration, compatible with standard commercial door preparations accepting interchangeable cores. Specific core compatibility should be confirmed with the door hardware schedule prior to ordering.

Installation Notes

Installation should be performed by a licensed commercial door hardware professional or access control integrator familiar with ANSI standard door preparations. Disconnect all electrical power to the access control circuit before wiring the electric function or RX switch connections. Verify door handing and backset requirements before installation, and confirm core compatibility with the existing keying system. Consult applicable building codes and local authority having jurisdiction for access control and egress compliance requirements.
