Schlage Commercial ND66CDRHO626 Nd Series Cylindrical Lock

Product Description

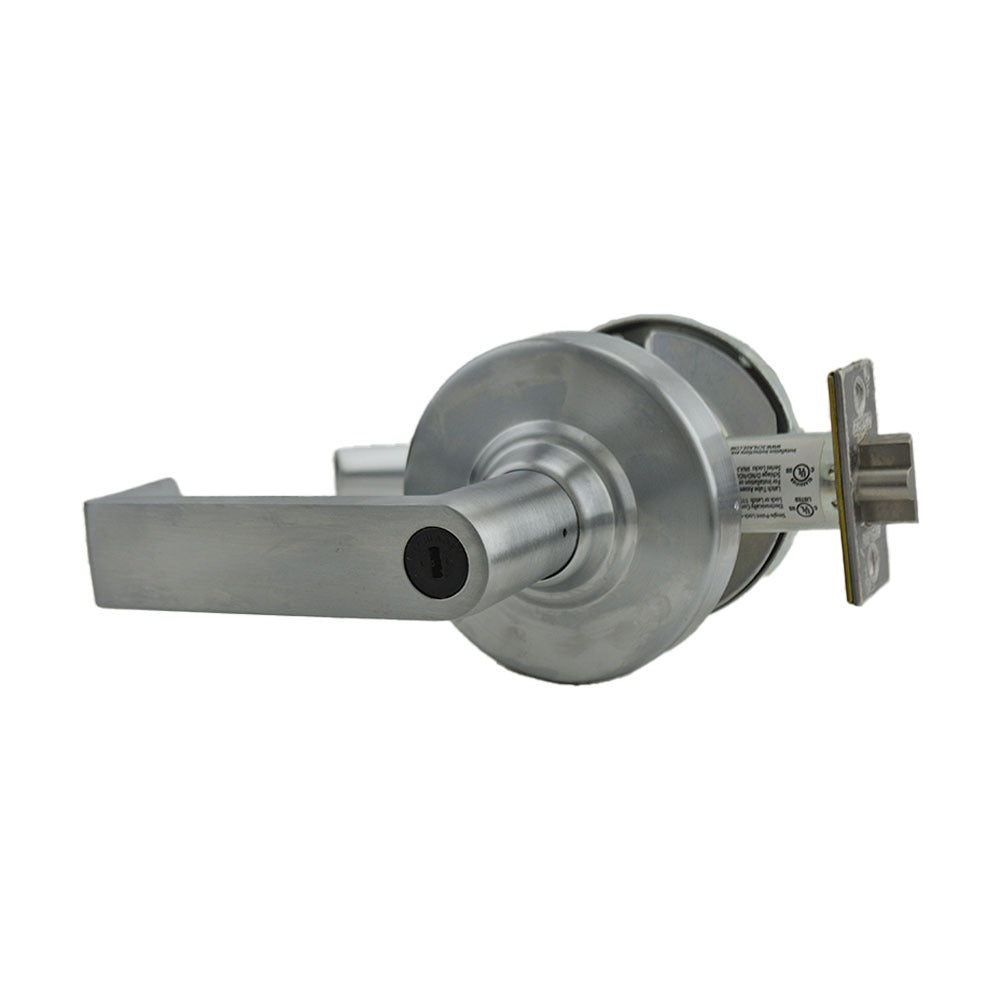

The SCHLAGE COMMERCIAL ND66CDRHO626 is an ND Series cylindrical lockset configured as a store less cylinder unit with Rhodes lever trim and a satin chrome finish. It ships with a 13-247 latch and a 10-025 strike plate, making it a complete door hardware assembly ready for installation. This unit is designed for commercial and institutional door applications where a durable, code-compliant cylindrical lock is required. The store less cylinder configuration allows the facility or locksmith to core the lock on-site with the appropriate interchangeable core. Licensed locksmiths, commercial door hardware installers, and facilities maintenance technicians are the primary installers.

The ND66CDRHO626 is suited for commercial office buildings, institutional facilities, multi-family residential common areas, and similar applications requiring controlled access on interior or exterior doors. The Rhodes lever design meets ADA lever requirements for accessible hardware. The included latch and strike plate reduce the need for separate hardware sourcing on standard door prep applications. This unit ships as a single each, with a case quantity of six available for larger projects.

Key Features

• Store less cylinder configuration allows on-site coring with an interchangeable core system
• Rhodes lever trim provides ADA-compliant lever geometry for accessible door hardware applications
• Satin chrome finish offers a clean, low-glare appearance suited to commercial interiors
• Includes 13-247 latch and 10-025 strike plate for a complete installation assembly
• ND Series cylindrical platform is a widely supported commercial lockset line
• Compact packaged dimensions support standard hardware distribution and job site storage

Compatibility

Designed as an OEM-style cylindrical lockset for commercial door hardware applications compatible with standard cylindrical lock prep doors. Specific compatible interchangeable core systems and door prep dimensions should be verified against ND Series installation documentation prior to ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware installer familiar with ANSI cylindrical lock prep standards. Verify door thickness, backset, and prep dimensions against ND Series specifications before installation. The store less cylinder configuration requires a separately sourced interchangeable core to complete the keying; do not operate the lock without the core installed. Follow all applicable local building codes and ADA accessibility requirements for lever hardware mounting height and clearance.
