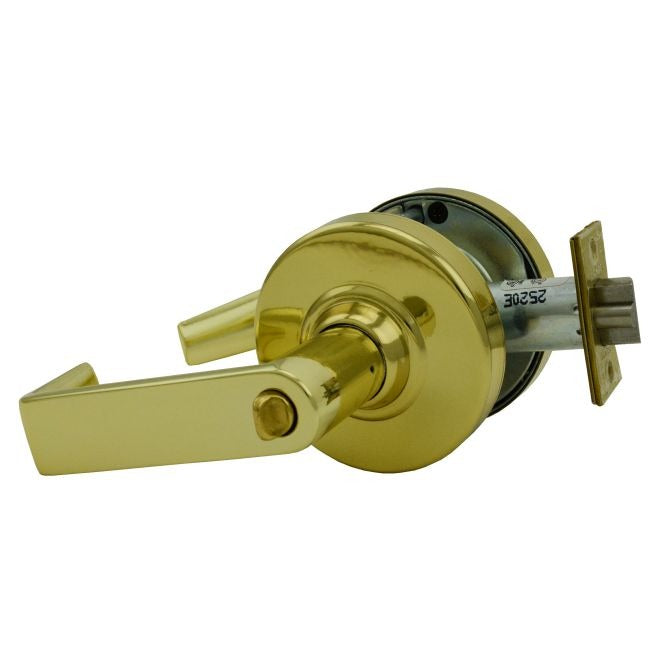

Schlage Commercial ND53LRHO605 Nd Series Entry Lever Lock

Product Description

The SCHLAGE COMMERCIAL ND53LRHO605 is an entry lever lock from the ND Series, designed for commercial and institutional door hardware applications. This less-cylinder configuration accepts a separate interchangeable core or standard cylinder, giving facilities managers and locksmiths flexibility in keying systems without replacing the lockset body. The Rhodes trim style provides a clean, traditional lever profile. Finished in Bright Brass (605), the unit ships complete with a 13-247 latch and 10-025 strike plate, reducing the need for separate trim hardware orders. At 5.18 pounds, this is a heavy-duty commercial-grade assembly built for high-traffic openings.

The ND53LRHO605 is intended for commercial, institutional, and multi-family building applications where entry function hardware is required on doors that see regular traffic. The entry function allows free egress from the inside while the outside lever requires a credential to operate. The less-cylinder design is well suited for master-keyed facilities using interchangeable core systems, allowing a single core to be swapped across multiple locksets. Typical install locations include office entry doors, classroom entries, and corridor access points where controlled entry is required.

Key Features

• ND Series commercial-grade lever lock with entry function
• Less-cylinder design accommodates interchangeable core or standard cylinder keying
• Rhodes lever trim style in Bright Brass (605) finish
• Includes 13-247 latch and 10-025 strike plate for complete installation
• Heavy-duty construction suitable for high-traffic commercial openings
• Sold individually; case quantity of 6 available for larger projects

Compatibility

Designed as an OEM-style commercial lockset within the Schlage Commercial ND Series platform. Specific door prep, backset, and cylinder compatibility should be verified against the door hardware schedule and ND Series installation documentation before ordering.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified commercial door hardware technician. Ensure the door is properly prepped to ANSI/BHMA specifications for the required backset and cross bore before mounting the lockset. Cylinder installation should be completed separately and matched to the facility keying system. Do not force the lever trim or latch assembly; confirm door and frame alignment before final hardware mounting.
