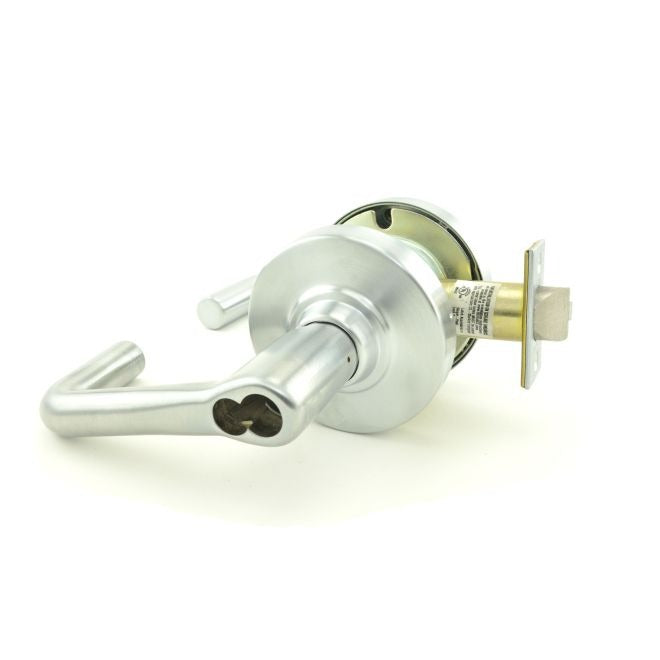

Schlage Commercial ND53JTLR626 Nd Series Entry Tubular Lockset

Product Description

The SCHLAGE COMMERCIAL ND53JTLR626 is an ND Series entry-function tubular lockset configured for Large Format Less Core (LFLC) installations. It ships with a 13-247 latch and 10-025 strike and features a satin chrome (626) finish. Designed for commercial and institutional doors, this lockset provides keyed entry function — locked from outside, free egress from inside — making it a standard fit for offices, schools, healthcare facilities, and other applications requiring controlled access. Licensed locksmiths, commercial door hardware installers, and facilities maintenance professionals are the typical trades who supply and install this hardware.

The ND Series is a heavy-duty commercial cylindrical lockset platform built for high-traffic doors in commercial, institutional, and multi-family settings. The Large Format Less Core configuration accepts a wide range of interchangeable large-format cores (LFLC) from major manufacturers, giving facilities managers flexibility in key system specification. The included 13-247 latch and 10-025 strike allow for complete installation without sourcing additional hardware for standard door preparations.

Key Features

• Entry function: outside lever locked by key, inside lever always free for egress
• Large Format Less Core (LFLC) — accepts interchangeable cores from compatible large-format key systems
• Ships complete with 13-247 latch and 10-025 strike
• Satin chrome (626) finish for corrosion resistance in commercial environments
• ND Series heavy-duty cylindrical platform rated for high-traffic commercial doors
• Sold individually (each)

Compatibility

Designed for use in the SCHLAGE COMMERCIAL ND Series with Large Format Less Core (LFLC) door preparations. Accepts large-format interchangeable cores compatible with the ND Series platform. Compatible with standard commercial door preparations using the included 13-247 latch and 10-025 strike.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI/BHMA standards for cylindrical locksets. Ensure the door is properly prepared to the correct backset and cross-bore dimensions before installation. The LFLC configuration requires a separately sourced large-format core to complete the cylinder — do not operate the lockset without a core installed. De-energize any electrified hardware on the door frame before beginning work.
