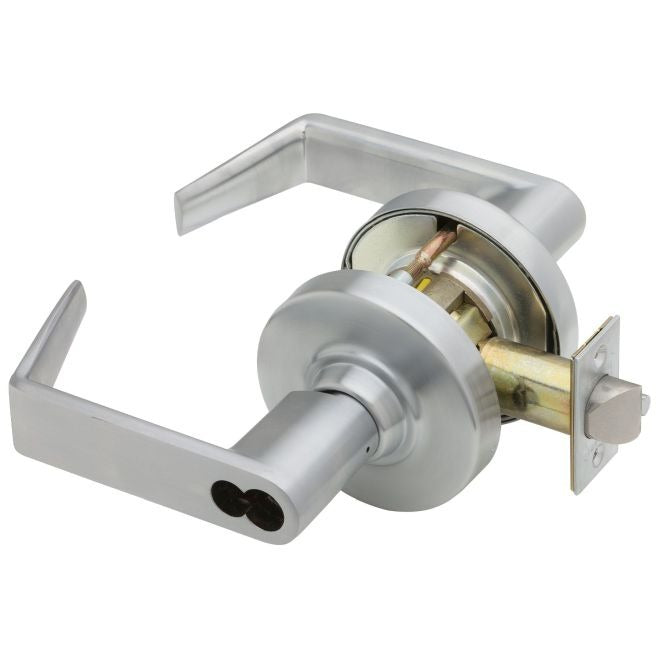

Schlage Commercial ND53JRHO626 Nd Series Entry Lever

Product Description

The SCHLAGE COMMERCIAL ND53JRHO626 is a heavy-duty entry lever lock built for commercial and institutional door applications. Part of the ND Series, this unit features a Large Format Less Core (LFLC) configuration, meaning the cylinder core is ordered separately, giving facility managers flexibility to specify their preferred interchangeable core system. The Rhodes trim style gives the lever a clean, professional profile. The satin chrome finish (626) resists corrosion and blends well with standard commercial hardware. Included with the lockset are a 13-247 latch and a 10-025 strike plate, providing a complete door prep package out of the box.

The ND53JRHO626 is suited for commercial buildings, institutional facilities, schools, healthcare environments, and multi-family properties where controlled entry is required. The entry function (ND53) allows free egress from the interior while requiring a credential on the exterior, making it appropriate for office suites, storerooms with frequent staff access, and corridor entry doors. Installation is typically performed by a licensed locksmith or commercial door hardware technician during new construction or retrofit projects.

Key Features

• ND Series heavy-duty commercial lever platform rated for high-traffic applications
• Large Format Less Core (LFLC) design accepts a separately sourced interchangeable core
• Entry function: free egress from interior, credential required on exterior
• Rhodes lever trim with satin chrome (626) finish
• Includes 13-247 latch and 10-025 strike for a complete hardware set
• Sold individually (EA); case quantity of 6 available

Compatibility

Designed as an OEM-style replacement or new-installation lever for commercial doors prepared for ND Series large format less core locksets. Core cylinder must be sourced separately and specified to match the facility key system.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI/BHMA grade commercial locksets. Verify door prep dimensions and backset before installation, and ensure the door is compatible with the included 13-247 latch and 10-025 strike. Disconnect or secure any access control wiring at the door before beginning service. The core cylinder is not included and must be installed before the lockset is placed into service.
