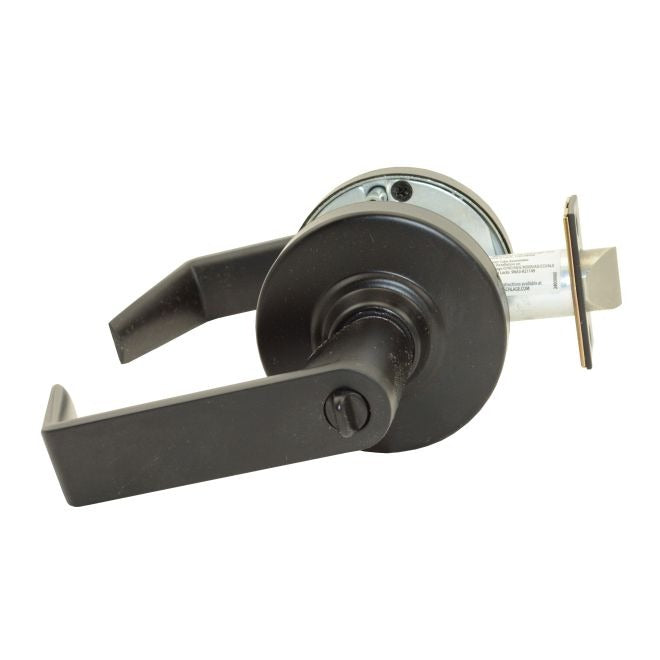

Schlage Commercial ND53JRHO622 Nd Series Entry Lever

Product Description

The SCHLAGE COMMERCIAL ND53JRHO622 is an ND Series entry lever lock configured for Large Format Less Core (LFLC) installations, finished in matte black (622). It features the Rhodes lever trim and ships with a 13-247 latch and 10-025 strike included. The LFLC design accepts a wide range of interchangeable core cylinders, making it a practical choice for facilities that use a master-key or large-format IC system. This lever is intended for commercial and institutional entry doors where controlled access is required. Installation is typically performed by a licensed locksmith or commercial door hardware professional.

The ND53JRHO622 is suited for commercial and institutional buildings including offices, schools, healthcare facilities, and multi-family common areas. The entry function (ND53) allows free egress from the inside while requiring a credential on the exterior. The Rhodes lever style provides a straightforward, durable grip profile appropriate for high-traffic doors. Because the unit ships less core, the end user or installer supplies the interchangeable core to match an existing keying system on site.

Key Features

• Large Format Less Core (LFLC) configuration accepts a wide range of interchangeable cores
• Entry function: free egress from inside, credential required to enter from outside
• Rhodes lever trim with matte black 622 finish
• Includes 13-247 latch and 10-025 strike for complete door prep
• Designed for commercial and institutional door applications with high cycle requirements
• Sold individually; sold in cases of 6

Compatibility

Designed as an OEM-style replacement or new-installation lever for commercial and institutional doors prepared for ND Series large format less core hardware. Specific core compatibility depends on the interchangeable core system in use at the facility.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial cylindrical lever sets. Confirm door prep dimensions and backset before beginning installation. Do not install the core until the lever chassis is fully secured to the door. Verify that the supplied strike aligns with the door frame mortise before final fastening.
