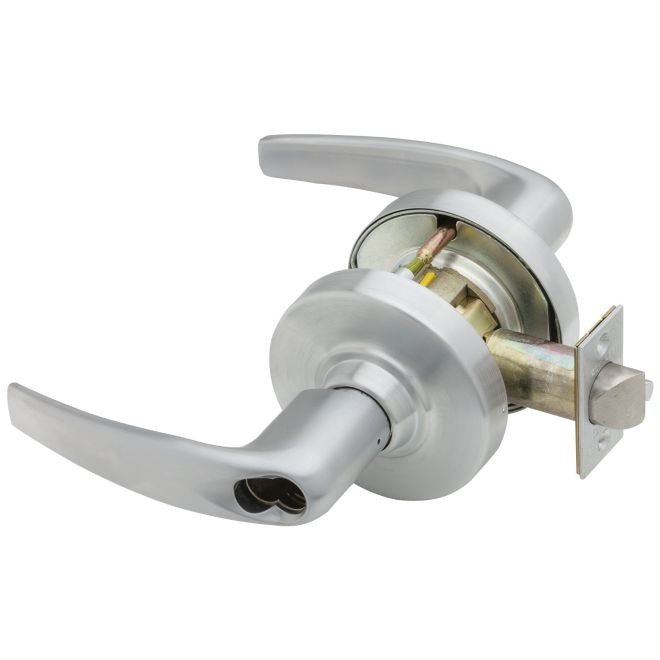

Schlage Commercial ND50BATH626 Nd Series Bath Lever

Product Description

The SCHLAGE COMMERCIAL ND50BATH626 is a heavy-duty bath privacy lever lock in the ND Series, designed for commercial and institutional door hardware applications. It ships as a Small Format Less Core (SFIC-ready) unit, meaning the core is ordered separately, giving facilities managers and locksmiths flexibility in keying systems. The Athens lever trim provides a clean, professional appearance, and the 626 satin chrome finish delivers corrosion resistance suitable for high-traffic restroom and office environments. Included hardware consists of a 13-247 latch and a 10-025 strike. Licensed locksmiths, commercial door hardware installers, and facilities maintenance professionals are the primary trades that work with this hardware.

This lock function is rated for bath and privacy applications, where a turn-button interior release and emergency outside access are required. It is well suited for single-occupancy restrooms, changing rooms, and similar spaces in commercial office buildings, healthcare facilities, schools, and institutional properties. The ND Series is a heavy-duty cylindrical lock line built to ANSI/BHMA Grade 1 standards, appropriate for doors that see consistent daily use in demanding environments.

Key Features

• Bath privacy function with interior push-button lock and emergency outside release
• Small Format Less Core (SFIC) configuration allows site-controlled keying flexibility
• Athens lever design compatible with commercial door prep standards
• 626 satin chrome finish for durability and a professional appearance
• Includes 13-247 latch and 10-025 strike for a complete installation package
• Sold individually (Sales Unit: EA)

Compatibility

Designed as an OEM-style replacement or new-installation cylindrical lever lock for commercial-grade doors prepared to standard ANSI cylindrical bore specifications. Accepts small format interchangeable cores ordered separately. No specific model or system compatibility was stated in the product data provided.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI cylindrical lock prep and small format interchangeable core systems. Confirm door thickness and backset requirements before installation, and ensure the door is not under power or access-control load during hardware swap. Do not install the core until the lever chassis is fully secured to the door. Local building codes may govern hardware function requirements for restroom and egress doors.
