Schlage Commercial ND40TLR626 Nd Series Privacy Tubular Lockset

Product Description

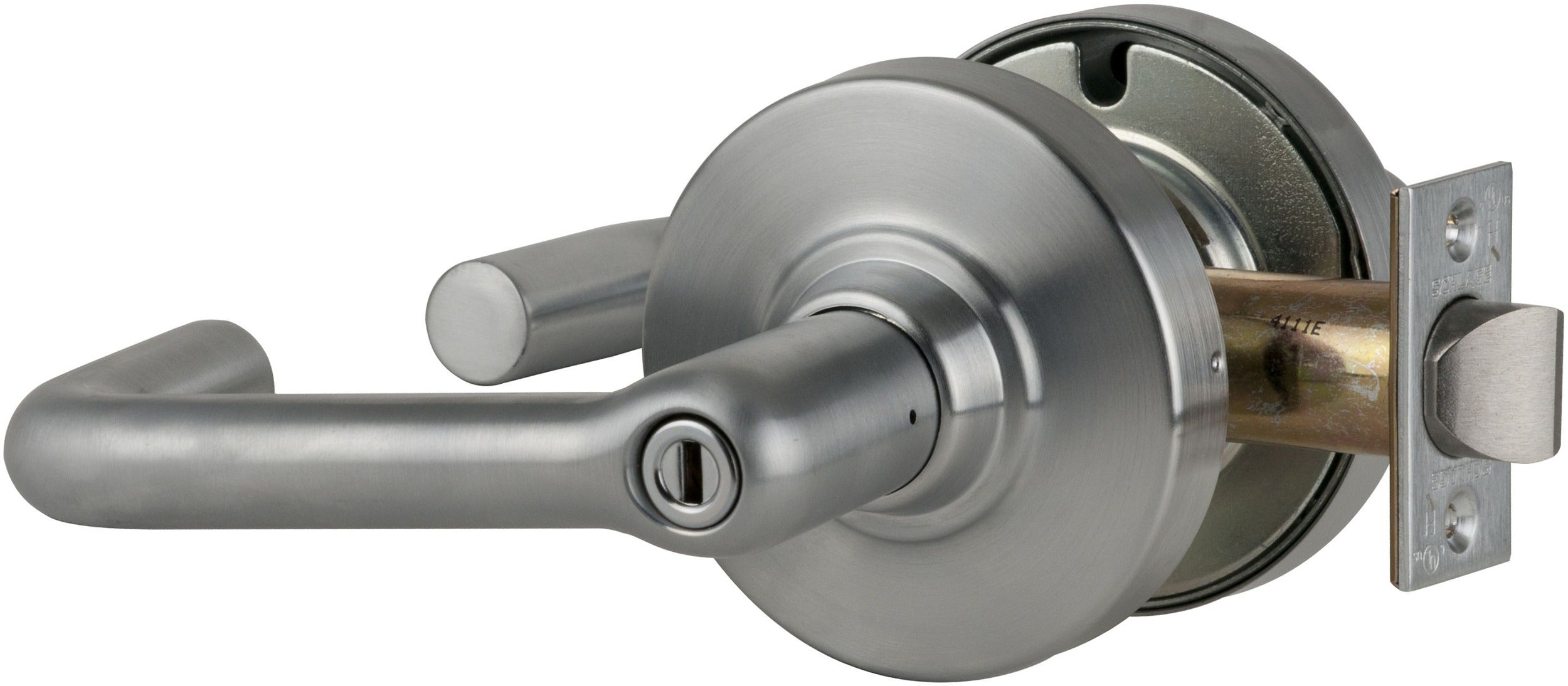

The SCHLAGE COMMERCIAL ND40TLR626 is a privacy-function tubular lockset from the ND Series, designed for commercial and institutional door hardware applications. It ships complete with a 13-248 latch and a 10-025 strike plate, finished in Satin Chrome (626). The privacy function allows interior locking without a key, making it appropriate for restrooms, offices, and similar spaces where occupant-controlled access is required. Licensed locksmiths and commercial door hardware installers handle this type of fitting as part of new construction and retrofit projects. The unit weighs 5.3 pounds and fits within a package footprint of 9.4 by 7.1 by 4.7 inches.

The ND40TLR626 is suited for commercial and institutional buildings including offices, healthcare facilities, schools, and multi-family common areas. The ND Series platform is a heavy-duty cylindrical lockset line built for high-traffic doors. This unit is sold individually and is also available in case quantities of six for larger projects requiring consistent hardware throughout a facility.

Key Features

• Privacy function allows occupant-side locking without a key
• Includes 13-248 latch and 10-025 strike plate for a complete installation kit
• Satin Chrome (626) finish resists tarnish in high-touch commercial environments
• ND Series heavy-duty cylindrical platform designed for high-traffic commercial doors
• Sold as individual unit with case quantity of six available

Compatibility

Designed as an OEM-style replacement or new-installation lockset for commercial doors prepared for heavy-duty cylindrical locksets in the ND Series format.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified commercial door hardware technician. Verify door prep dimensions, including bore diameter and backset, before mounting. Ensure the door is not under tension and that any existing hardware is fully removed before fitting the new lockset. Follow applicable building and fire codes regarding egress hardware requirements in commercial occupancies.
