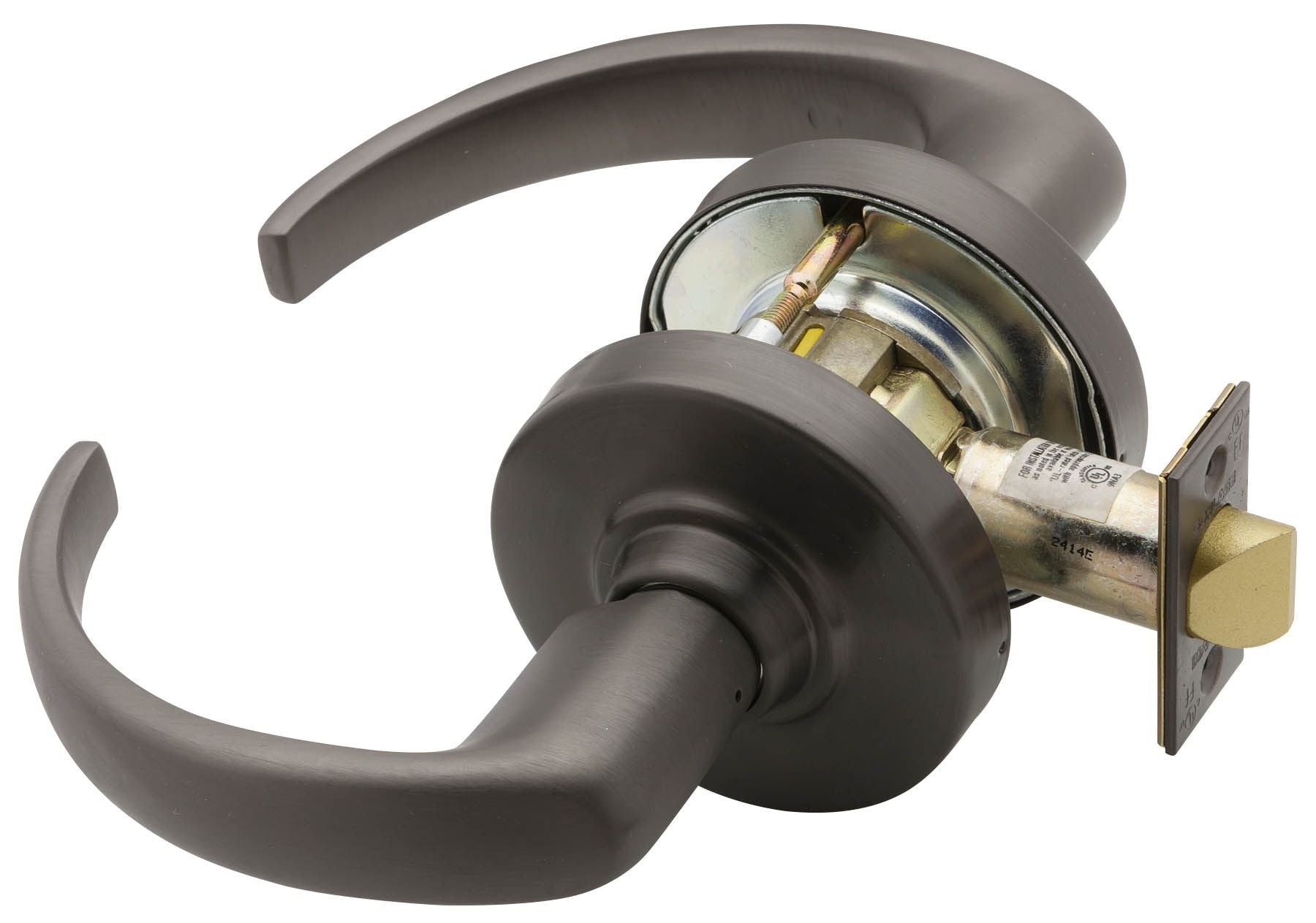

Schlage Commercial ND10SPA613 Nd Series Passage Lockset

Product Description

The SCHLAGE COMMERCIAL ND10SPA613 is a passage lockset from the ND Series, featuring the Sparta lever trim in an Oil Rubbed Bronze (613) finish. Passage function means the lever operates freely from both sides with no locking mechanism, making it suited for interior doors where free passage is required but a latching mechanism is still needed. The set ships with a 13-248 latch and a 10-025 strike plate. At 5 pounds, this is a heavy-duty commercial-grade lever set built for institutional and commercial door applications. Installation is performed by a licensed locksmith or commercial door hardware professional.

The ND10SPA613 is designed for commercial and institutional interior door applications where a passage function is required. Typical installations include corridor doors, conference rooms, storage rooms, and other non-secured interior openings in office buildings, schools, healthcare facilities, and multi-family residential common areas. The Sparta lever style and Oil Rubbed Bronze finish are commonly specified on commercial projects requiring a traditional aesthetic. The included 13-248 latch and 10-025 strike are matched components for a complete, ready-to-install assembly.

Key Features

• Passage function: lever operates freely from both sides, no locking required
• Sparta lever trim in Oil Rubbed Bronze (613) finish
• Includes 13-248 latch and 10-025 strike plate for a complete assembly
• ND Series heavy-duty commercial construction rated for high-cycle institutional use
• Oil Rubbed Bronze finish suitable for matching commercial hardware schedules

Compatibility

Designed as an OEM-style replacement or new-installation passage lockset for commercial and institutional doors within the Schlage ND Series platform. Consult door prep specifications to confirm bore pattern and backset compatibility before ordering.

Installation Notes

Installation should be performed by a qualified locksmith or commercial door hardware technician familiar with ANSI/BHMA door prep standards. Confirm door thickness, backset, and bore diameter match the lockset requirements before beginning installation. Ensure the door is not under load and that the latch and strike are properly aligned before final fastening. Follow applicable building codes for hardware specifications in commercial and institutional occupancies.
