Schlage Commercial ND10RHO606 Nd Series Passage Lever

Product Description

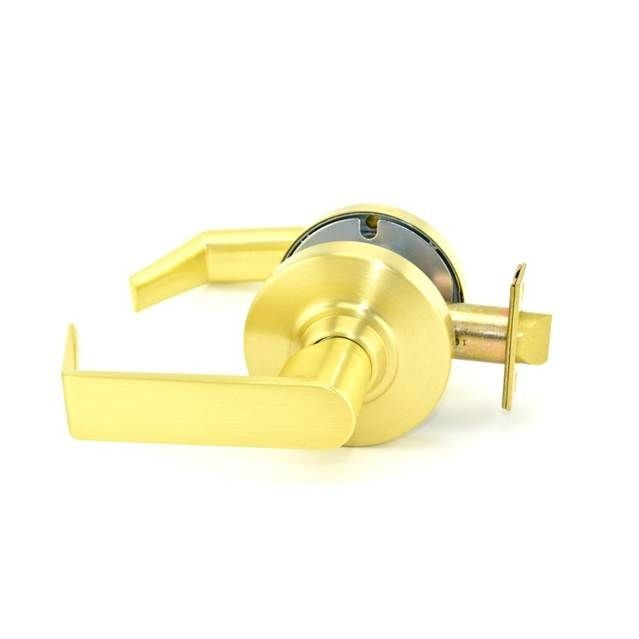

The SCHLAGE COMMERCIAL ND10RHO606 is a passage lever lockset from the ND Series, designed for commercial and institutional door applications where latch function is required without a locking mechanism. Finished in satin brass, this unit ships with a 13-248 latch and 10-025 strike included. The lockset body measures 9.5 inches in length, 8 inches in width, and 4.8 inches in height, and weighs 4.96 pounds. It is intended for installation by licensed locksmiths, commercial door hardware contractors, or qualified facilities maintenance personnel on standard commercial door preps.

The ND10RHO606 is suited for interior passage applications in commercial buildings, institutional facilities, multi-family residential properties, and similar environments where free passage is required through a door without keyed or privacy locking. The Rhodes trim style provides a traditional lever profile. This unit is sold individually and is also available in case quantities of six units. It fits standard ANSI commercial door preparations and is appropriate for office corridors, hallways, and common area doors.

Key Features

• Passage function lever — no locking mechanism, free egress in both directions
• Rhodes lever trim style in satin brass (606) finish
• Includes 13-248 latch and 10-025 strike plate
• ND Series commercial-grade lever lockset construction
• Unit dimensions: 9.5 inches long, 8 inches wide, 4.8 inches high
• Sold individually; case quantity of six available

Compatibility

Designed as an OEM-style commercial passage lever for standard ANSI commercial door preparations compatible with the ND Series product line.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI standard door prep dimensions. Verify door thickness, backset, and bore dimensions before installation. Ensure the door is stationary and de-latched prior to hardware removal or installation. Consult applicable building and fire codes for egress hardware requirements in commercial occupancies.
