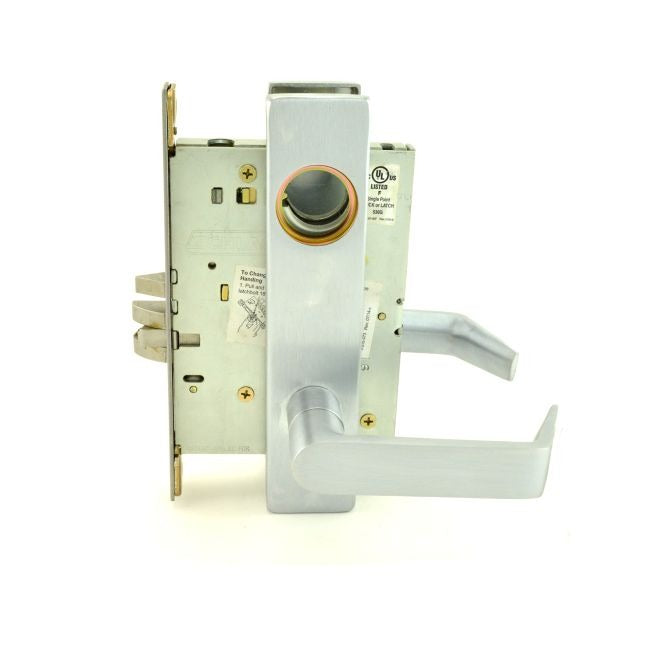

Schlage Commercial L9453P06L626 Mortise Lock Satin Chrome

Product Description

The SCHLAGE COMMERCIAL L9453P06L626 is a heavy-duty mortise lockset designed for commercial and institutional door applications. It combines an entry and office function with an integrated deadbolt into a single mortise body, providing both latch and deadbolt security in one unit. The lock ships with the 06 lever style and L escutcheon trim, finished in satin chrome (626). The C keyway is keyed differently (KD), making it compatible with facility keying programs. Licensed locksmiths, commercial door hardware installers, and facility maintenance technicians are the primary trades that specify and install this hardware.

This mortise lock is suited for commercial office doors, institutional corridors, and multi-family entry points where code-compliant, heavy-duty locksets are required. The entry and office function allows the lever to be locked or unlocked from the inside while maintaining keyed entry from the exterior. The deadbolt adds a secondary locking point, making it appropriate for perimeter office doors and tenant separation doors where higher security is needed. The satin chrome finish coordinates with standard commercial trim packages.

Key Features

• Entry and office function with integrated deadbolt in a single mortise body
• 06 lever style with L escutcheon provides a clean commercial profile
• Satin chrome (626) finish for corrosion resistance in high-traffic environments
• C keyway, keyed differently — compatible with facility master key systems
• Sold individually, with a case quantity of 4 units available

Compatibility

Designed as an OEM-style commercial mortise lockset for standard mortise door prep applications in commercial and institutional buildings. No specific compatible model numbers or replacement part numbers were provided in the product data.

Installation Notes

Mortise locksets require a mortise pocket cut into the door edge; installation should be performed by a licensed locksmith or qualified door hardware installer. Verify the door thickness, handing, and backset dimensions before installation. Consult applicable building codes, including IBC and NFPA 80 where fire-rated assemblies are involved, to confirm hardware meets egress and fire-rating requirements. De-energize any access control or electrified hardware integrated into the door before beginning work.
