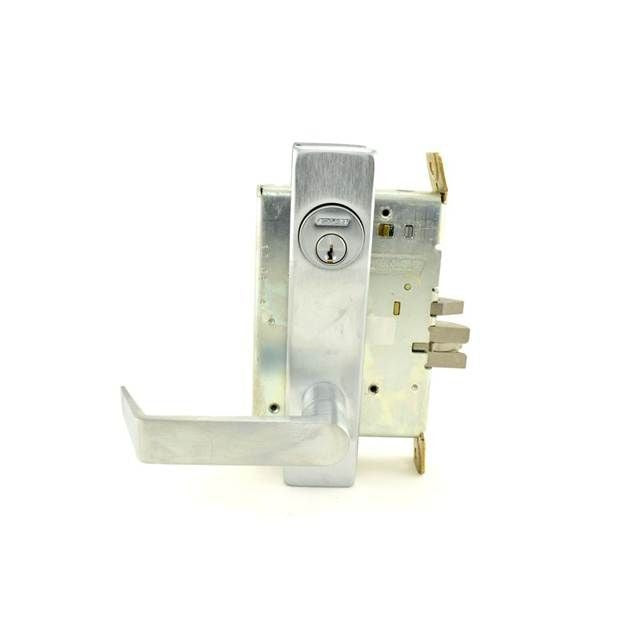

Schlage Commercial L9080P06L626 Storeroom Mortise Lock

Product Description

The SCHLAGE COMMERCIAL L9080P06L626 is a storeroom-function mortise lockset designed for commercial and institutional door hardware applications. It ships with the 06 lever style and L escutcheon in a satin chrome (626) finish. The C keyway configuration is keyed different (KD), meaning it arrives without a key bitting assigned to a master key system, giving the installer full control over keying at the job site. This lockset is intended for storeroom or closet function: the exterior lever is always locked and requires a key to retract the latch, while the interior lever is always free. Licensed locksmiths and commercial door hardware installers are the primary trade for this product.

This mortise lock is suited for commercial buildings, institutional facilities, schools, healthcare environments, and multi-tenant properties where controlled storeroom access is required. The L-series mortise body is a heavy-duty chassis designed for high-traffic openings in wood or hollow metal door frames. The satin chrome finish coordinates with standard commercial hardware trim packages. The keyed-different configuration is typical for doors that require independent key control rather than integration into a master key system at the time of order.

Key Features

• Storeroom function: exterior lever locked at all times, key required to retract latch
• 06 lever trim with L escutcheon for a standard commercial profile
• C keyway, keyed different (KD) for independent key control
• Satin chrome 626 finish for corrosion resistance and coordination with commercial trim
• Mortise body design suited to high-traffic commercial and institutional openings

Compatibility

Designed as an OEM-style commercial mortise lockset for standard mortise door prep cutouts in wood and hollow metal doors. No specific compatible model numbers or replacement part numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI mortise lock prep requirements. Confirm the door thickness, backset, and existing mortise pocket dimensions before installation. De-energize any electrified hardware on the opening before beginning work. Follow applicable local building codes and fire-rated door assembly requirements when installing on labeled openings.
