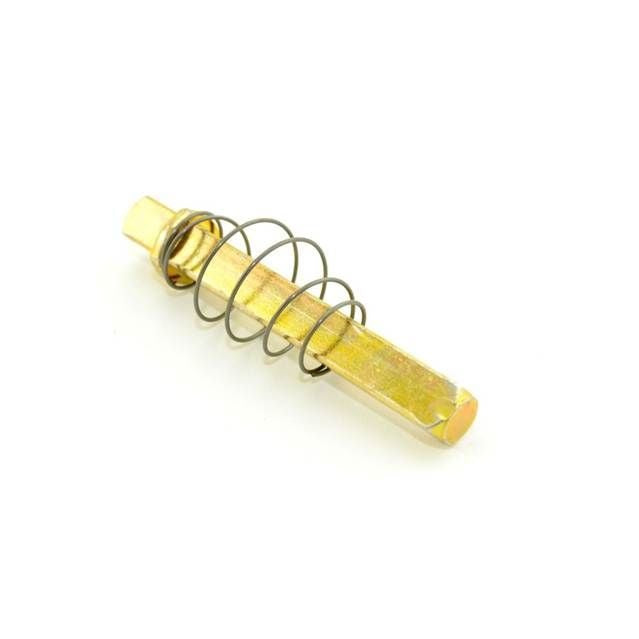

Schlage Commercial L283061 L Series Spindle and Spring

Product Description

The SCHLAGE COMMERCIAL L283061 is a spindle and spring replacement component designed for use with Schlage L Series commercial locksets. This part provides the mechanical linkage between the interior and exterior trim, allowing the lever or knob to retract the latch bolt. It is intended for doors ranging from 2 inches to 3.5 inches in thickness, making it suitable for heavy-duty commercial and institutional door applications. Licensed locksmiths and commercial door hardware technicians are the primary installers of this component. At 0.08 pounds, it is a compact, lightweight part measuring approximately 2.7 inches in length and 0.5 inches in both width and height.

This spindle and spring is used in commercial and institutional settings where Schlage L Series mortise or cylindrical locksets are installed. Typical applications include office buildings, schools, healthcare facilities, and multi-family residential properties. The part accommodates a range of door thicknesses from 2 inches to 3.5 inches, covering most standard commercial door assemblies. It is sold individually and is a direct service or maintenance replacement for worn or damaged spindle assemblies in existing L Series hardware installations.

Key Features

• Compatible with door thicknesses from 2 inches to 3.5 inches
• Designed for Schlage L Series lockset hardware
• Compact form factor: 2.7 inches long, 0.5 inches wide, 0.5 inches tall
• Lightweight at 0.08 pounds for easy handling during service calls
• Sold individually (EA) for single-unit replacement needs

Compatibility

Designed as an OEM-style replacement spindle and spring for Schlage L Series commercial lockset hardware installed on doors with thicknesses between 2 inches and 3.5 inches.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Before servicing, ensure the door is held open and any access control power to the hardware is disconnected. Refer to the Schlage L Series installation documentation for proper spindle orientation and spring seating procedures. Do not force the spindle into position, as improper installation can affect latch retraction and lockset function.
