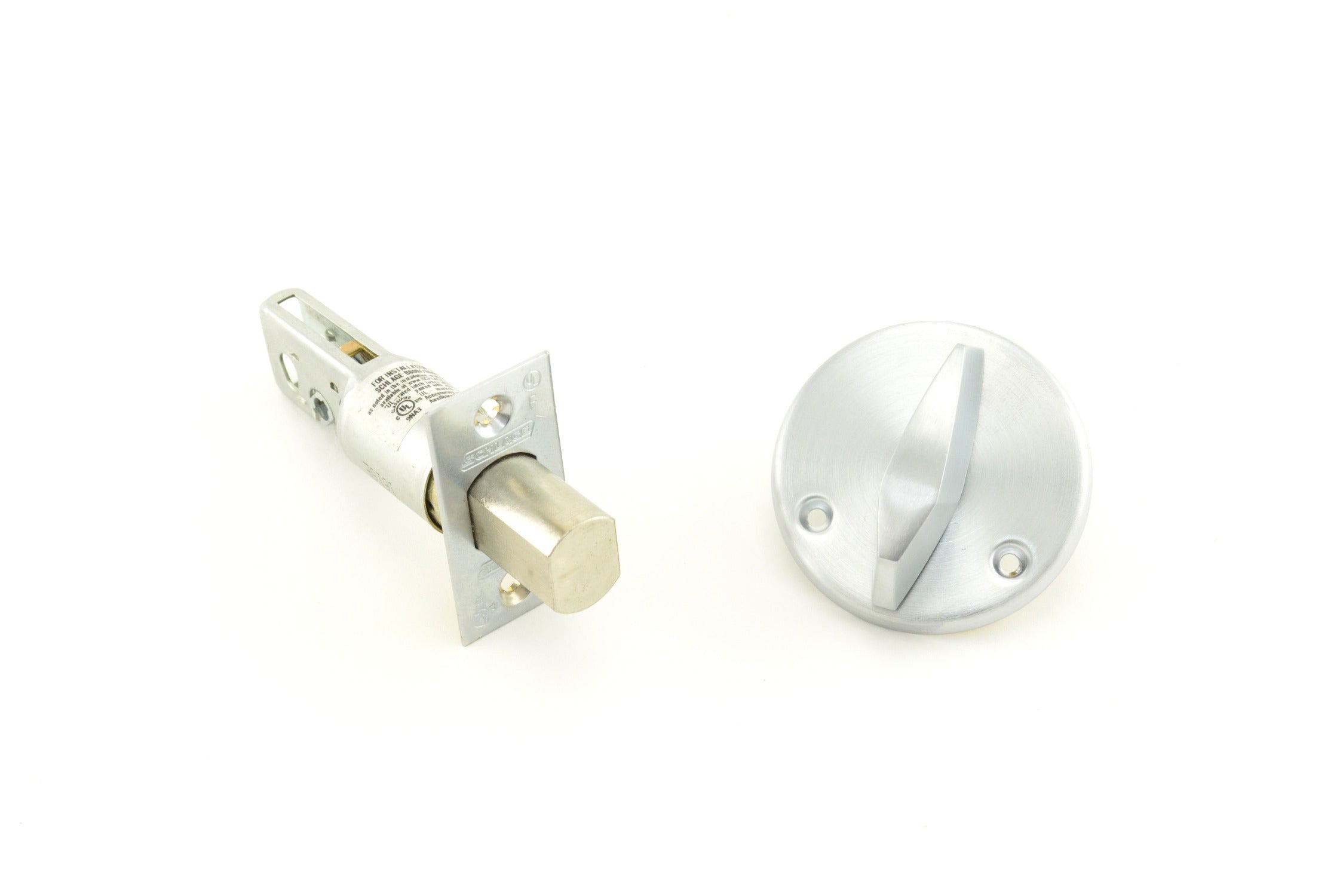

Schlage Commercial B680626 Grade 1 Turn Only Deadbolt

Product Description

The SCHLAGE COMMERCIAL B680626 is a Grade 1 turn-only deadbolt designed for commercial and institutional door applications where keyless, single-side locking is required. This deadbolt includes the 12296 latch and 10094 strike plate and ships in a Satin Chrome finish. The Grade 1 rating indicates the highest ANSI/BHMA cycle and strength classification for commercial deadbolts, making it appropriate for high-traffic entry points. It is typically installed by commercial locksmiths or general contractors on interior doors requiring positive locking without a keyed exterior cylinder. The unit weighs 1.2 pounds and measures 5.7 inches in length, 4.3 inches in width, and 3 inches in height.

This deadbolt is suited for commercial, institutional, and multi-family applications where interior-side thumb-turn or lever-turn operation is the only locking requirement. Common installation scenarios include stairwell doors, storage rooms, offices, and utility spaces where access control from one side is sufficient. The included 12296 latch and 10094 strike provide a complete installation kit for standard door prep. The Satin Chrome finish coordinates with most commercial hardware families.

Key Features

• ANSI/BHMA Grade 1 rated for heavy-duty commercial and institutional use
• Turn-only operation — no keyed cylinder on the exterior side
• Includes 12296 latch and 10094 strike for a complete installation
• Satin Chrome finish for compatibility with standard commercial hardware sets
• Sold as individual unit with a case quantity of 4

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for commercial and institutional doors with standard ANSI door prep accepting a Grade 1 deadbolt.

Installation Notes

Installation is typically performed by a licensed commercial locksmith or qualified contractor. The door should be fully closed and all latch hardware disengaged before beginning installation. Follow ANSI A156.30 or applicable local codes for commercial deadbolt installation. Do not overtighten mounting screws, as this can affect latch and bolt alignment.
