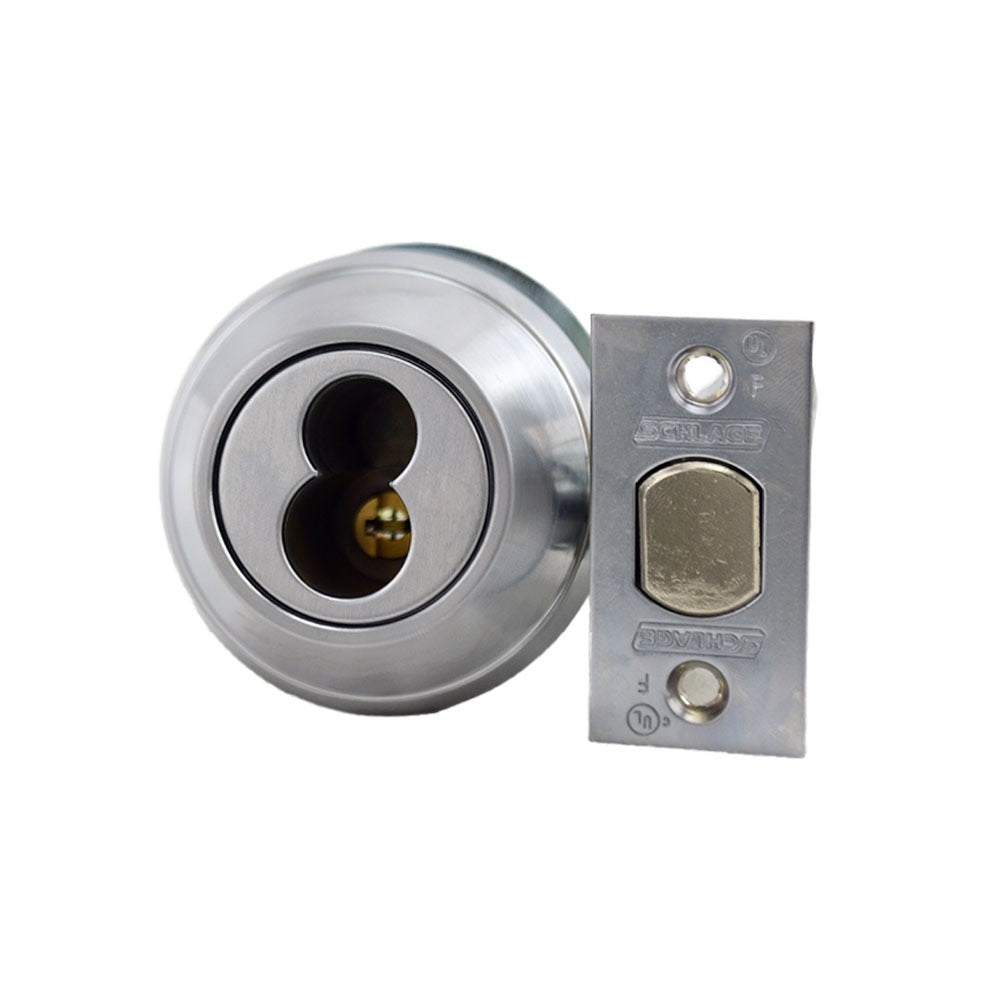

Schlage Commercial B663J626 Classroom Deadbolt Satin Chrome

Product Description

The SCHLAGE COMMERCIAL B663J626 is a Grade 1 classroom deadbolt designed for commercial and institutional door hardware applications. This deadbolt ships without a Large Format Interchangeable Core (LFIC), making it compatible with facility keying systems that use a separately sourced LFIC cylinder. The package includes a 12296 latch and a 10094 strike plate. At 2 pounds, it is a solid, full-duty lock body built for high-traffic commercial doors. Grade 1 is the highest ANSI/BHMA rating for commercial locksets, indicating it meets rigorous cycle, strength, and security testing standards appropriate for schools, office buildings, and institutional facilities.

This deadbolt is suited for classroom or corridor applications in commercial, institutional, and multi-family settings where interchangeable core key control is required. The Less LFIC configuration allows facility managers and locksmiths to install the lock body before the core is available, or to rekey by swapping cores without removing the lockset from the door. The satin chrome finish blends with standard commercial hardware schedules. Included latch and strike components allow for complete installation without additional trim hardware sourcing.

Key Features

• ANSI/BHMA Grade 1 rating for heavy-duty commercial and institutional use
• Less Large Format Interchangeable Core (LFIC) — core ordered and installed separately for flexible key control
• Includes 12296 latch and 10094 strike plate for a complete installation kit
• Satin chrome (626) finish for standard commercial hardware compatibility
• Classroom deadbolt function suitable for high-traffic door applications
• Compact profile at 5.7 x 4.5 x 3.1 inches for standard commercial door prep

Compatibility

Designed for commercial and institutional doors requiring a Grade 1 deadbolt with Large Format Interchangeable Core prep. The LFIC cylinder must be sourced separately and is not included. Supplied with 12296 latch and 10094 strike.

Installation Notes

Installation is performed by a licensed locksmith or qualified commercial door hardware technician. Verify door thickness and backset before installation to confirm compatibility with the included latch. The LFIC cylinder must be inserted and secured before the door is returned to service. Follow ANSI A156.30 and applicable local building codes for commercial deadbolt installation and fire-rated door hardware requirements.
