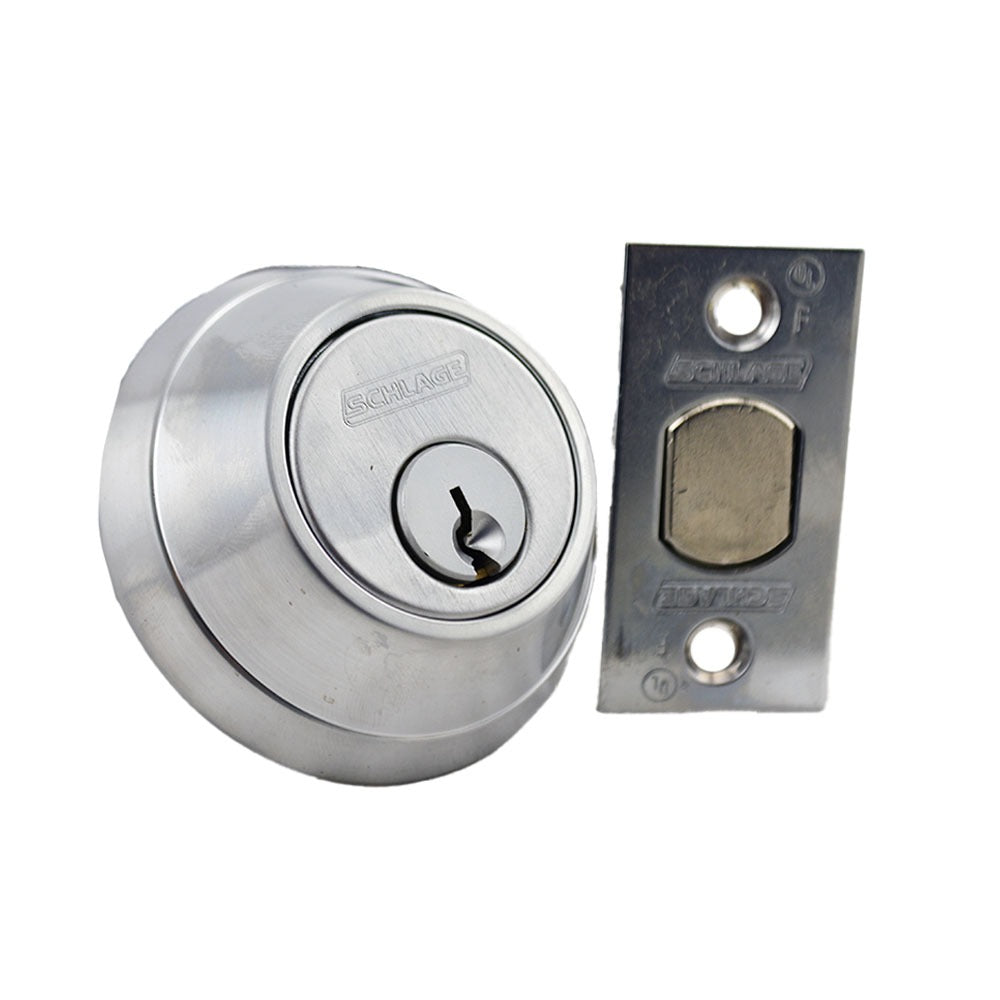

Schlage Commercial B662P626 Grade 1 Double Cylinder Deadbolt

Product Description

The SCHLAGE COMMERCIAL B662P626 is a Grade 1 double cylinder deadbolt designed for commercial and institutional door applications. It features a C keyway with a keyed-different (KD) cylinder configuration, meaning each lock ships with its own unique key cut. The deadbolt includes a 12296 latch and 10094 strike plate and ships in a satin chrome finish. At 2.3 pounds, it is built to withstand the demands of high-traffic commercial environments. Licensed locksmiths, commercial door hardware installers, and facilities maintenance technicians are the primary installers of this hardware.

This double cylinder deadbolt is suited for commercial, institutional, and multi-family residential applications where both sides of the door require key operation. Typical installations include office entry doors, stairwell doors, and exterior commercial doors where code or security policy requires keyed access from both the interior and exterior. The satin chrome finish coordinates with standard commercial hardware trims. The included 12296 latch and 10094 strike plate allow for a complete installation without sourcing additional components.

Key Features

• Grade 1 commercial-duty construction for high-traffic and institutional use
• Double cylinder design requires key operation from both sides of the door
• C keyway with keyed-different (KD) configuration for individual key control
• Satin chrome (626) finish for corrosion resistance and compatibility with standard commercial trim
• Includes 12296 latch and 10094 strike plate for complete installation
• Sold individually; case quantity of 4 available for multi-door projects

Compatibility

Designed as an OEM-style Grade 1 deadbolt replacement or new installation for standard commercial door preparations accepting a double cylinder deadbolt with a C keyway configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI Grade 1 hardware standards. Verify door thickness and backset dimensions against the latch specifications before beginning installation. Double cylinder deadbolts may be subject to local fire and building code restrictions on certain egress doors — confirm compliance with applicable codes before installation. De-energize any access control or electric strike hardware at the door before beginning work.
