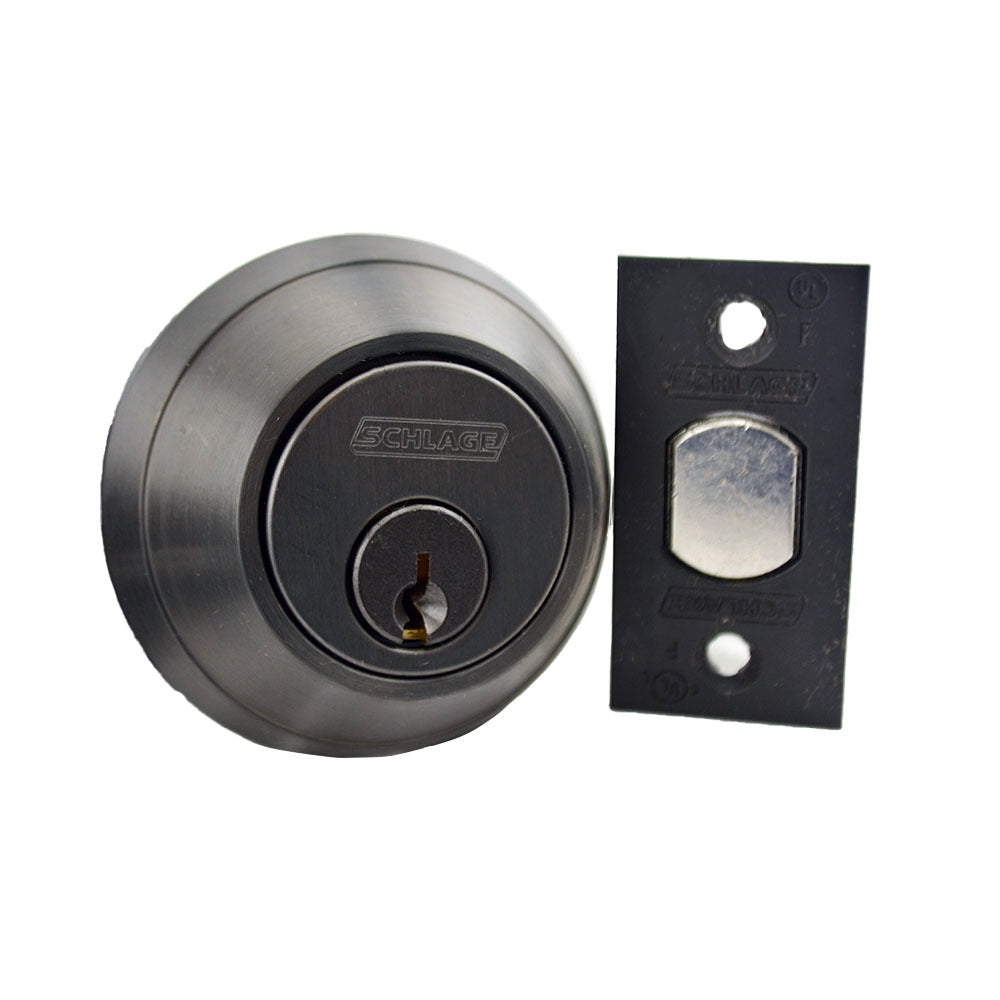

Schlage Commercial B662P613 Grade 1 Double Cylinder Deadbolt

Product Description

The SCHLAGE COMMERCIAL B662P613 is a Grade 1 double cylinder deadbolt designed for commercial and institutional door hardware applications. It features a C keyway with a keyed-different (KD) configuration, meaning each unit ships with its own unique key cuts and is not master-keyed from the factory. The deadbolt includes a 12296 latch and 10094 strike plate and ships in an Oil Rubbed Bronze (613) finish. Grade 1 is the highest ANSI/BHMA rating for deadbolts, indicating heavy-duty cycle testing and resistance to forced entry. Licensed locksmiths, commercial door hardware contractors, and facilities maintenance teams are the typical installers.

This deadbolt is suited for commercial office doors, institutional corridors, multi-family entry doors, and other applications where double-cylinder security is required on both the interior and exterior sides of the door. A double cylinder design requires a key to operate the lock from both sides, which is common in doors with glass panels or sidelites where a thumb-turn could be reached through broken glass. The Oil Rubbed Bronze finish integrates with standard commercial architectural hardware suites in that finish family.

Key Features

• ANSI/BHMA Grade 1 rating — highest commercial deadbolt duty classification
• Double cylinder operation — key required from both interior and exterior sides
• C keyway with keyed-different (KD) factory configuration
• Includes 12296 latch and 10094 strike plate
• Oil Rubbed Bronze (613) finish for architectural compatibility
• Sold individually; case quantity of 4 available

Compatibility

Designed as an OEM-configuration replacement or new-installation deadbolt for commercial and institutional doors requiring a Grade 1 double cylinder deadbolt with C keyway and Oil Rubbed Bronze finish.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician in accordance with applicable building codes and the door manufacturer's boring specifications. Verify that the door thickness and backset dimension are compatible before installation. On commercial projects, check local fire and life safety codes before installing double cylinder deadbolts, as some jurisdictions restrict their use on certain egress doors. De-energize any adjacent access control hardware before beginning work.
