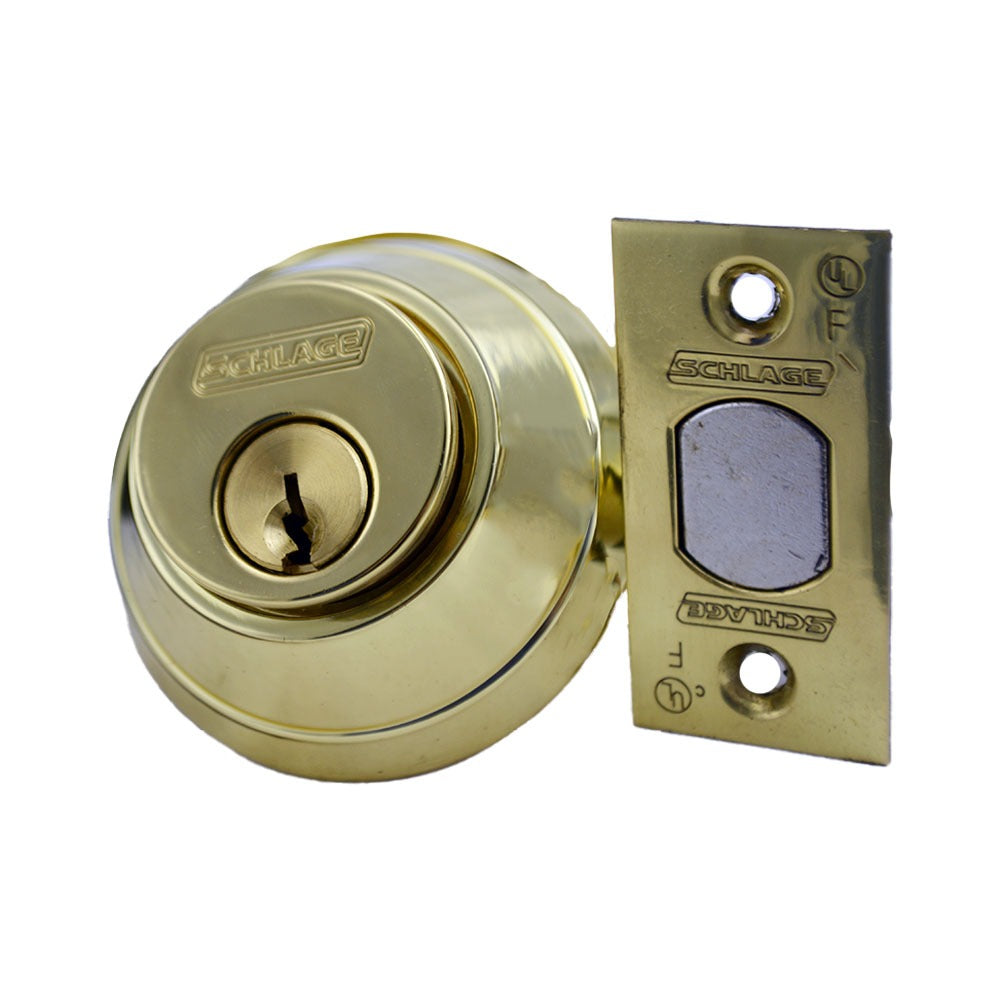

Schlage Commercial B662P605 Double Cylinder Deadbolt

Product Description

The SCHLAGE COMMERCIAL B662P605 is a Grade 1 double cylinder deadbolt designed for commercial and institutional door applications requiring high-security, key-operated locking on both the interior and exterior sides. Built to ANSI/BHMA Grade 1 standards, it represents the highest classification for residential and commercial lock duty. The B662P605 ships with a C keyway configuration, keyed different (KD), and includes a 12296 latch and 10094 strike. The Bright Brass (605) finish suits standard commercial hardware sets. At 2.5 pounds, this is a solid, full-duty deadbolt intended for professional installation.

This deadbolt is suited for commercial buildings, institutional facilities, multi-family properties, and high-traffic entry doors where a double cylinder configuration is required. A double cylinder design means a key is required to operate the lock from both sides, making it common on doors with adjacent glass panels or sidelites where single-cylinder thumb-turn access would pose a security risk. The included 12296 latch and 10094 strike allow for a complete installation without sourcing separate hardware. Locksmiths, commercial door hardware installers, and general contractors handle this type of installation.

Key Features

• ANSI/BHMA Grade 1 rating, the highest duty classification for deadbolts
• Double cylinder operation requires a key on both interior and exterior sides
• C keyway, keyed different (KD) from the factory
• Includes 12296 latch and 10094 strike for a complete installation kit
• Bright Brass (605) finish for compatibility with standard commercial hardware sets
• Sold individually, case quantity of 4 available

Compatibility

Designed as an OEM-grade replacement or new-installation deadbolt for commercial and institutional doors requiring a Grade 1 double cylinder deadbolt with a C keyway and 605 Bright Brass finish.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware installer. Ensure the door and frame are properly prepped to ANSI standard backset and cross-bore dimensions before installation. Because a double cylinder deadbolt requires a key to exit, verify local fire code and egress regulations before installing on any door used as a means of egress. Remove all tension from the door and secure the work area before drilling or mounting.
