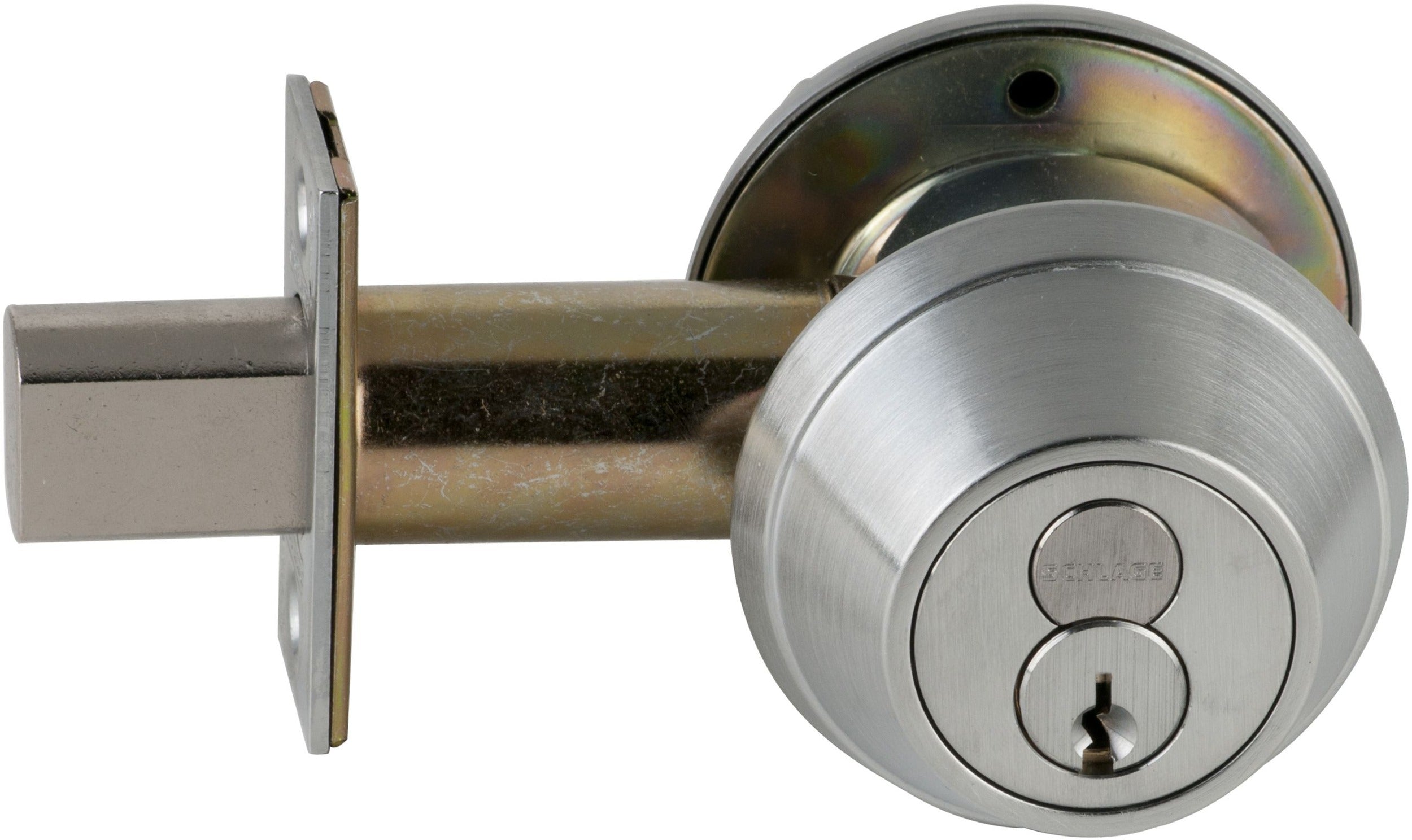

Schlage Commercial B660R626 Grade 1 Deadbolt Satin Chrome

Product Description

The SCHLAGE COMMERCIAL B660R626 is a Grade 1 single cylinder deadbolt designed for commercial and institutional door hardware applications. It features a Large Format Interchangeable Core (LFIC) with a C keyway, 1-bitted from the factory, making it compatible with master key and interchangeable core keying systems used by facilities maintenance and commercial locksmiths. Included with the unit are a 12296 latch and 10094 strike plate. The satin chrome finish (626) suits high-traffic commercial environments where corrosion resistance and a clean appearance are priorities. At 2.2 pounds, the assembly is a solid, full-weight commercial-grade unit built for demanding install conditions.

This deadbolt is suited for commercial, institutional, and multi-family applications where Grade 1 security and interchangeable core convenience are required. The LFIC design allows facility managers to rekey locks without removing the hardware from the door, a significant advantage in schools, hospitals, office buildings, and other high-security environments. A licensed locksmith or commercial door hardware technician typically handles specification and installation in these settings.

Key Features

• ANSI/BHMA Grade 1 rating for maximum commercial security performance
• Large Format Interchangeable Core (LFIC) accepts standard LFIC cylinders for rapid rekeying
• C keyway, 1-bitted from factory for integration into master key systems
• Includes 12296 latch and 10094 strike for complete installation
• Satin chrome finish (626) provides corrosion resistance in high-traffic environments
• Sold individually; case quantity of 4 available for volume orders

Compatibility

Designed for use with Large Format Interchangeable Core cylinders on commercial and institutional doors. Compatible with standard LFIC cylinders using a C keyway. Specific system or hardware family compatibility should be verified against the door preparation and core manufacturer specifications prior to ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with LFIC systems. Verify door thickness, backset, and prep dimensions before installation to ensure proper fit. De-energize any access control or electric strike systems tied to the door before beginning work. Follow applicable local building codes and manufacturer instructions for strike reinforcement and door edge prep.
