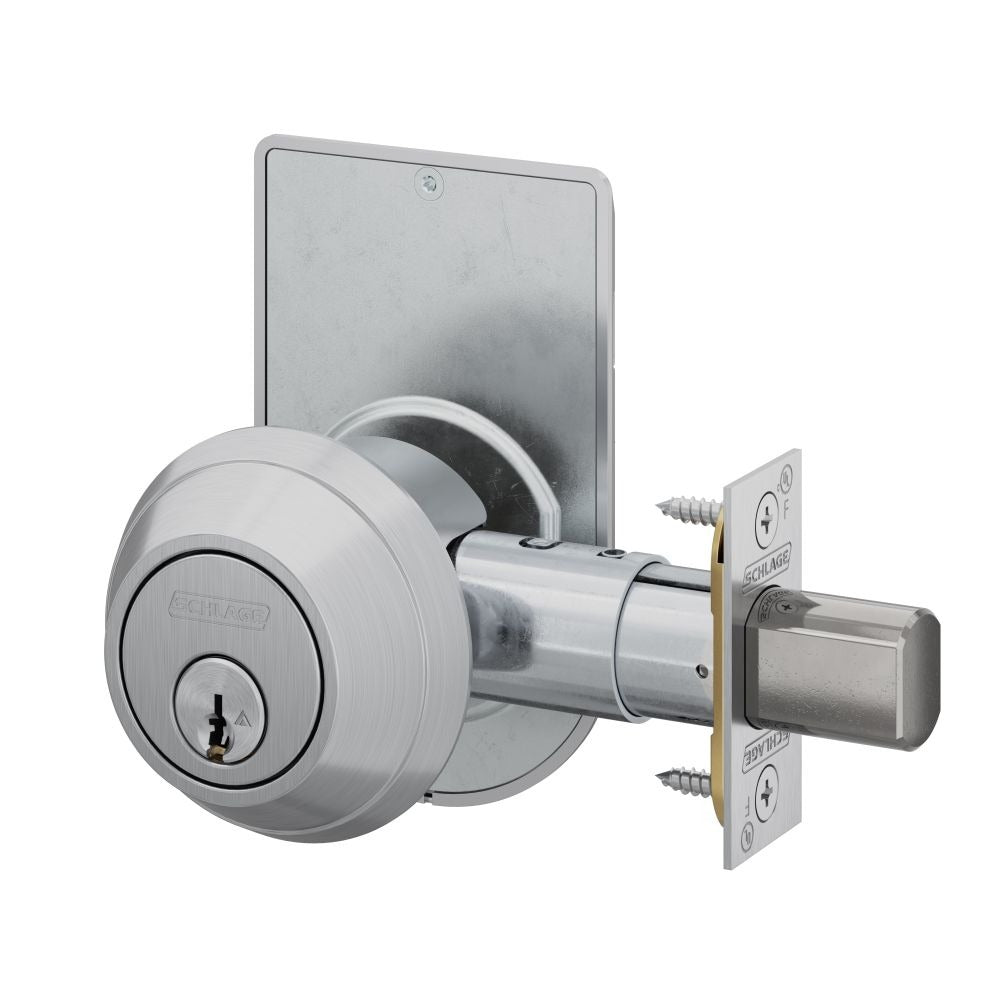

Schlage Commercial B660P626ISLOC Grade 1 Single Cylinder Deadbolt

Product Description

The SCHLAGE COMMERCIAL B660P626ISLOC is a Grade 1 single cylinder deadbolt designed for commercial and institutional door applications where security and visible status indication are required. It ships with a C keyway, keyed different (KD) cylinder, a 12296 latch, and a 10094 strike plate. The inside locked/unlocked indicator gives building staff or security personnel a quick visual confirmation of door status without opening the door. At 2.5 pounds, the unit is solidly built for heavy-use environments. Licensed locksmiths, door hardware technicians, and commercial contractors are the typical installing trades.

This deadbolt is suited for commercial offices, institutional corridors, multi-family common areas, and similar applications where a Grade 1 security rating and keyed-different cylinders are specified. The C keyway is a widely used commercial keyway, and the KD configuration means each lock ships with its own unique key cuts. The inside indicator feature is particularly useful in restrooms, private offices, or any space where occupancy status needs to be visible from the corridor side.

Key Features

• Grade 1 deadbolt rating for maximum commercial security performance
• Single cylinder design with C keyway and keyed different (KD) cylinder included
• Inside locked/unlocked indicator visible from the exterior side of the door
• Includes 12296 latch and 10094 strike plate for a complete installation package
• Satin chrome (626) finish for a clean, professional appearance on commercial doors

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for commercial and institutional doors accepting standard single cylinder deadbolt prep. Includes 12296 latch and 10094 strike as specified in the product configuration.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified door hardware technician familiar with commercial-grade hardware. Ensure the door is properly prepped with a standard deadbolt bore and edge bore before installation. Verify strike plate alignment with the door frame mortise before final fastening. Follow applicable local building codes and ADA requirements for hardware mounting height and operation.
