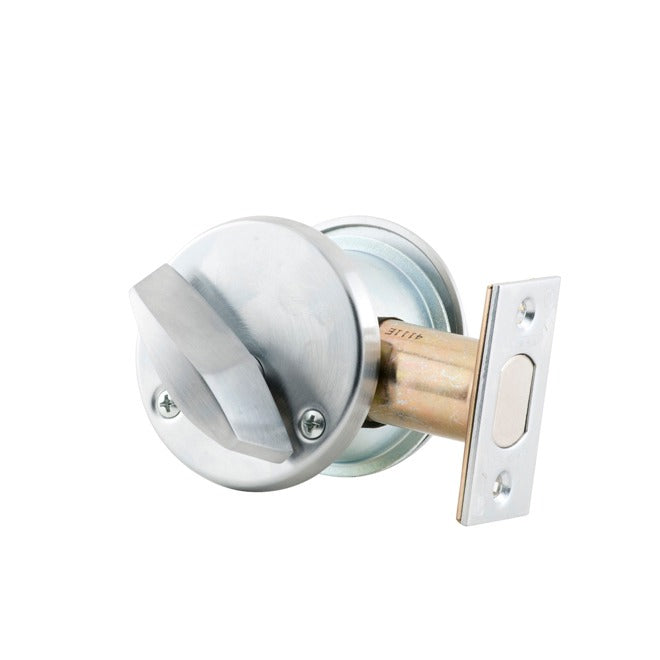

Schlage Commercial B660P626 Grade 1 Single Cylinder Deadbolt

Product Description

The SCHLAGE COMMERCIAL B660P626 is a Grade 1 single cylinder deadbolt designed for commercial and institutional door hardware applications. It features a C keyway with a keyed-different (KD) cylinder, meaning each unit ships with its own unique key cut. The deadbolt includes a 12296 latch and 10094 strike plate, and carries a satin chrome finish (626). Grade 1 is the highest rating under ANSI/BHMA standards, making this unit appropriate for high-traffic commercial doors where durability and security performance are required. Licensed locksmiths, commercial door hardware contractors, and facility maintenance technicians are the typical installers.

This deadbolt is suited for commercial, institutional, and multi-family residential applications where a standalone single cylinder deadbolt is specified. The C keyway is a Schlage standard keyway widely used in commercial master key systems. The keyed-different configuration means this unit does not arrive set up for a master key system out of the box, though a licensed locksmith can rekey or repin as needed for a master key program. The satin chrome finish coordinates with 626-finish hardware on aluminum or hollow metal door frames.

Key Features

• ANSI/BHMA Grade 1 rating for heavy-duty commercial use
• Single cylinder operation: key on exterior, thumb turn on interior
• C keyway cylinder, keyed different
• Includes 12296 latch and 10094 strike plate
• Satin chrome (626) finish for corrosion resistance and clean appearance
• Sold individually; case quantity of 12 available

Compatibility

Designed as an OEM-style commercial deadbolt replacement or new-installation unit for standard single cylinder deadbolt prep doors. Compatible with Schlage C keyway key systems. Includes 12296 latch and 10094 strike as specified in the product configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with ANSI door prep standards. Verify the door has the correct backset and cross-bore preparation before installing the latch and deadbolt. Ensure the door and frame are properly aligned so the latch and strike engage without binding. Consult local building codes for egress and accessibility requirements when specifying commercial door hardware.
