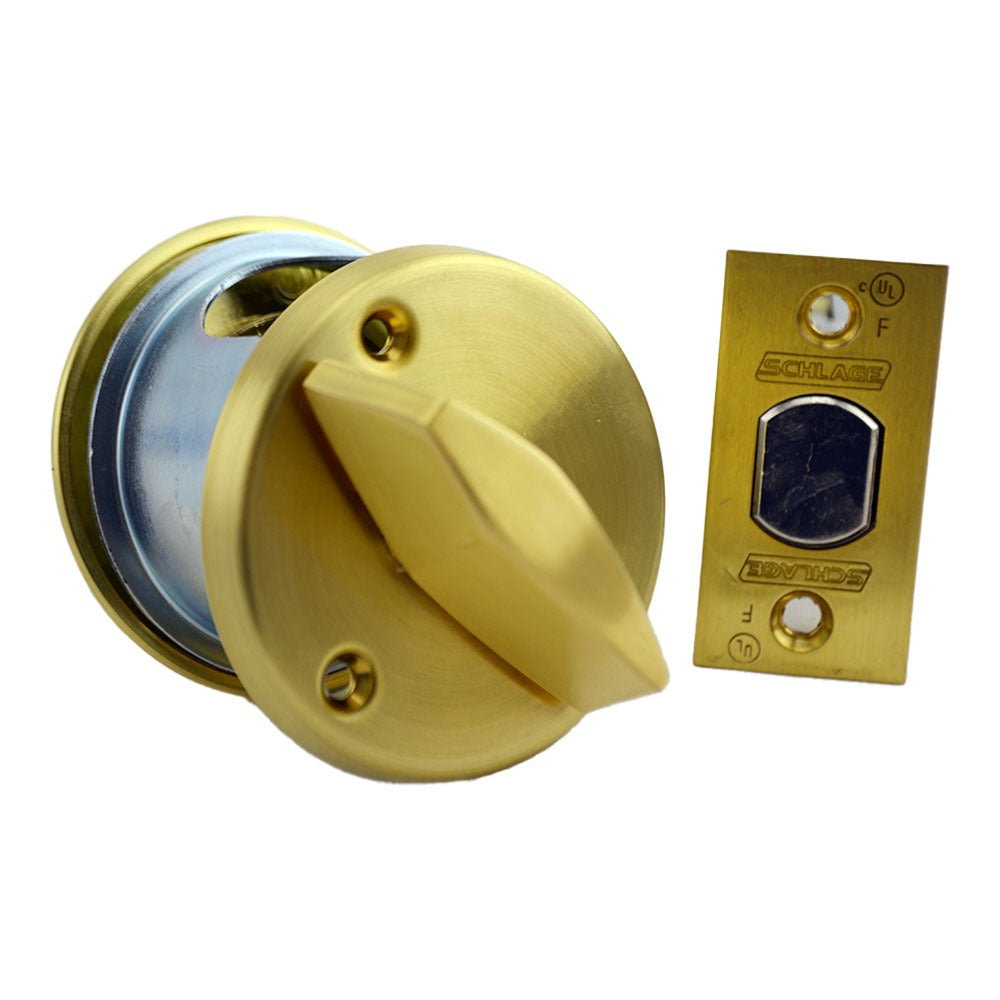

Schlage Commercial B660P606 Grade 1 Deadbolt

Product Description

The SCHLAGE COMMERCIAL B660P606 is a Grade 1 single cylinder deadbolt designed for commercial and institutional door applications. It features a C keyway configuration and is supplied keyed different, making it suitable for facilities that require individual key control across multiple doors. The satin brass (606) finish provides a professional appearance and corrosion resistance appropriate for high-traffic environments. Supplied with a 12296 latch and 10094 strike, this deadbolt arrives as a complete, ready-to-install lockset assembly. Grade 1 certification indicates the highest ANSI/BHMA residential and commercial performance rating, covering cycle life, bolt strength, and security.

This deadbolt is intended for commercial, institutional, and multi-family residential applications where a robust single cylinder deadbolt is required. The C keyway is a widely used commercial keyway that integrates into standard key systems. The keyed different configuration is typical in new construction, tenant spaces, or any facility where each door requires its own distinct key. Licensed locksmiths and commercial door hardware installers are the primary trades for this product.

Key Features

• ANSI/BHMA Grade 1 rated for maximum security and cycle durability
• Single cylinder operation with thumb turn on the interior side
• C keyway, keyed different configuration for individual key control
• Satin brass (606) finish for professional appearance and corrosion resistance
• Includes 12296 latch and 10094 strike for a complete installation
• Sold individually; case quantity of 4 available

Compatibility

Designed as an OEM-style Grade 1 single cylinder deadbolt for commercial and institutional door applications using a C keyway configuration. Includes 12296 latch and 10094 strike as specified in product documentation.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Verify that the door preparation (bore diameter and backset) matches the lock specifications before installation. Ensure the door is closed and all power to any adjacent access control hardware is off before beginning work. Follow local building codes and the manufacturer installation instructions for proper strike reinforcement and bolt projection requirements.
