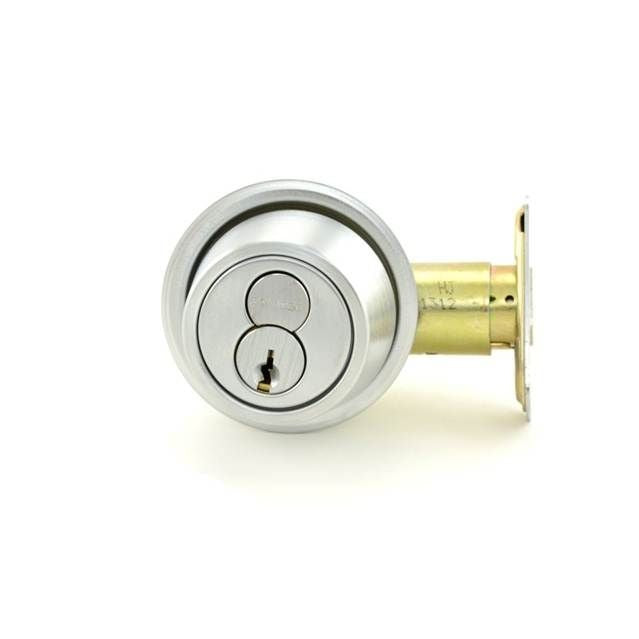

Schlage Commercial B562R626 Grade 2 Double Cylinder Deadbolt

Product Description

The SCHLAGE COMMERCIAL B562R626 is a Grade 2 double cylinder deadbolt designed for commercial and institutional door hardware applications. It features a full size interchangeable core (FSIC) with a C keyway, bitted to a factory 1-bitted configuration. The unit ships with a 12287 latch and a 10094 strike plate. The satin chrome finish (626) provides corrosion resistance suitable for interior commercial doors. At 2.5 pounds, the assembly is a solid mechanical deadbolt intended for installation by licensed locksmiths or qualified door hardware technicians.

This deadbolt is suited for commercial buildings, multi-family residential properties, and institutional facilities where a double cylinder configuration is required. A double cylinder design means both the interior and exterior sides require a key to operate, which is common in doors with adjacent glass panels or where interior free-egress is not required by code. The FSIC design allows the core to be removed and replaced without disassembling the lock body, making it practical for large keying systems and rekeying programs.

Key Features

• Grade 2 commercial-duty double cylinder deadbolt construction
• Full size interchangeable core (FSIC) allows core removal without lock disassembly
• C keyway with factory 1-bitted key for initial installation
• Includes 12287 latch and 10094 strike plate for complete installation
• Satin chrome (626) finish for clean appearance on commercial doors
• Sold individually; case quantity of 4 available for project orders

Compatibility

Designed as an OEM-style Grade 2 deadbolt replacement or new-installation unit for commercial and institutional doors accepting a full size interchangeable core with a C keyway configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial deadbolt prep and FSIC keying systems. Verify local life-safety and building codes before installing a double cylinder deadbolt, as some jurisdictions restrict their use on egress doors. Ensure the door prep matches the required backset and cross bore dimensions before installation. Remove all power from any associated access control hardware before beginning work on the door assembly.
