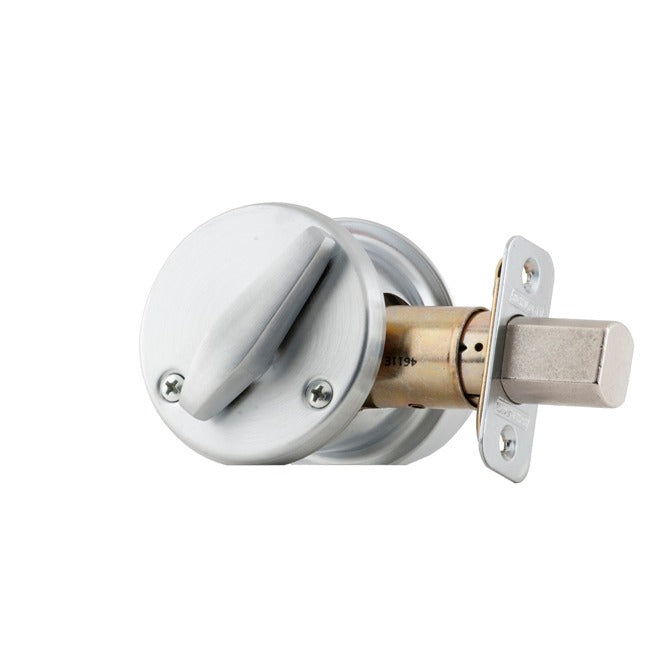

Schlage Commercial B560R626 Grade 2 Deadbolt Satin Chrome

Product Description

The SCHLAGE COMMERCIAL B560R626 is a Grade 2 single cylinder deadbolt designed for commercial and light institutional door hardware applications. It features a full size interchangeable core (FSIC) with a C keyway, supplied 1 bitted, which allows facilities using a master key or large keying system to swap cores without removing the lock body from the door. The unit ships with a 12287 latch and a 10094 strike. The satin chrome (626) finish provides corrosion resistance suitable for interior commercial doors. Installation requires a licensed locksmith or qualified door hardware technician familiar with FSIC systems.

This deadbolt is intended for commercial interior or light-duty exterior doors in office, multi-family, and institutional settings where interchangeable core keying systems are already in use. The FSIC format is common in large facilities that require frequent re-keying without full lock replacement. The C keyway limits key duplication and integrates with standard Schlage commercial keying hierarchies. The included latch and strike are factory-matched to this lock body, reducing the need for field fabrication of hardware sets.

Key Features

• Grade 2 commercial deadbolt rating suitable for interior and light commercial door applications
• Full size interchangeable core (FSIC) design allows core removal and replacement without disassembling the lock from the door
• C keyway with 1 bitted core included, compatible with Schlage FSIC keying systems
• Includes 12287 latch and 10094 strike for a complete, factory-matched hardware set
• Satin chrome (626) finish for durability and a clean, professional appearance on commercial doors

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for commercial doors utilizing Schlage full size interchangeable core systems with a C keyway configuration.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware professional familiar with FSIC deadbolt systems. Power down or de-energize any associated access control hardware before servicing the door. Verify door prep dimensions and backset before installation to confirm the 12287 latch fits the existing door bore. Follow applicable local building codes and ANSI hardware standards for commercial door hardware installation.
