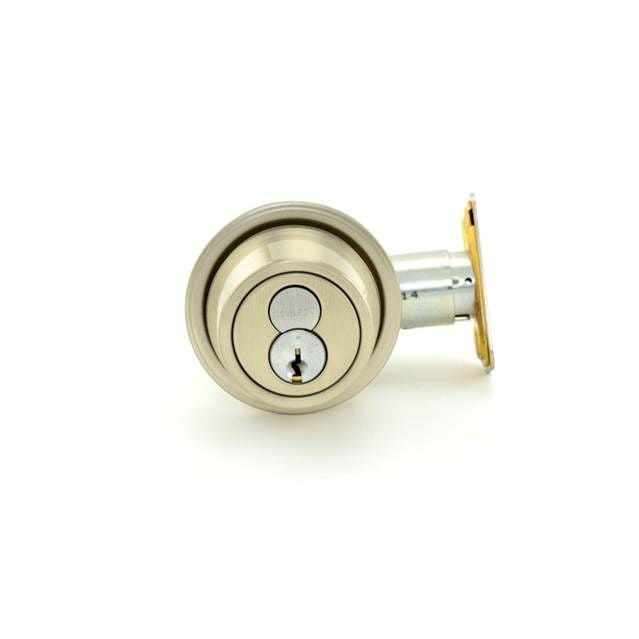

Schlage Commercial B560R619 Grade 2 Deadbolt Satin Nickel

Product Description

The SCHLAGE COMMERCIAL B560R619 is a Grade 2 single cylinder deadbolt designed for commercial and institutional door applications. It features a full size interchangeable core (FSIC) with a C keyway, pre-bitted at 1 bitted, which allows for rapid core exchange without removing the lock from the door. The unit ships with a 12287 latch and a 10094 strike included. Finished in satin nickel (619), it suits interior and light-duty commercial doors where a clean, professional appearance is required alongside reliable deadbolt security. Installation is handled by licensed locksmiths or commercial door hardware technicians.

This deadbolt fits commercial office buildings, multi-family residential corridors, institutional facilities, and similar environments where a keyed-entry deadbolt with interchangeable core capability is specified. The FSIC format is common in large-key-system environments where master key control and fast rekeying cycles are priorities. The C keyway designation is standard for Schlage interchangeable core systems and must be matched to compatible cores and keys in the existing key system.

Key Features

• Grade 2 deadbolt construction suitable for commercial door applications
• Full size interchangeable core (FSIC) format allows tool-free core replacement
• C keyway pre-bitted at 1 bitted for integration into large key systems
• Includes 12287 latch and 10094 strike — no additional hardware required for basic installation
• Satin nickel (619) finish for a professional, corrosion-resistant appearance

Compatibility

Designed for use with full size interchangeable cores on the C keyway. Compatible cores and keys must match the C keyway specification. Consult the existing key system records before ordering cores or additional cylinders.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with FSIC deadbolt systems. Ensure the door and frame are properly prepared per the lock manufacturer's door prep specifications before installation. Verify that the existing key system uses a compatible FSIC format and C keyway before inserting or ordering cores. Follow all applicable local building codes and fire egress requirements when installing deadbolts on commercial or institutional doors.
