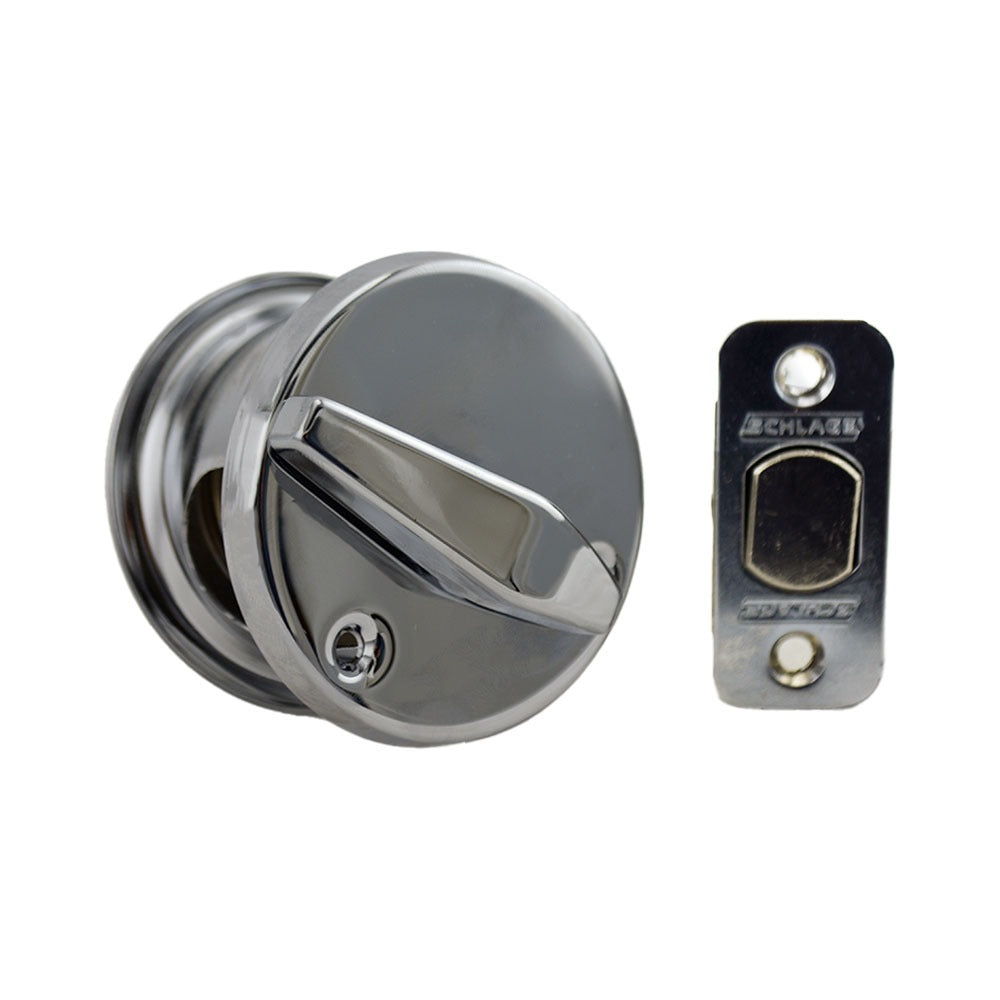

Schlage Commercial B560P625 Grade 2 Single Cylinder Deadbolt

Product Description

The SCHLAGE COMMERCIAL B560P625 is a Grade 2 single cylinder deadbolt designed for commercial and light commercial door applications. It ships with a C keyway configuration, keyed differently (KD) and keyed alike to a KA4 group. The unit includes a 12287 latch and a 10094 strike plate, and is finished in Bright Chrome (625). Measuring 5.6 inches in length, 4.4 inches in width, and 3 inches in height, this deadbolt is suited for doors where reliable key-operated locking is required on one side and a thumb turn on the other. Locksmiths and commercial door hardware installers handle this type of unit in new construction and retrofit projects.

This deadbolt is appropriate for commercial doors in office buildings, multi-family residential entry points, and institutional settings where Grade 2 security hardware is specified. The C keyway allows integration into existing master key systems. The included 12287 latch and 10094 strike plate allow for a complete installation without sourcing additional hardware. The KA4 keying designation means this unit can be matched to others within the same keying group on a job site or building.

Key Features

• Grade 2 single cylinder deadbolt construction rated for commercial applications
• C keyway compatible with standard and master key systems
• Keyed differently (KD) with KA4 keyed-alike grouping
• Includes 12287 latch and 10094 strike plate for complete installation
• Bright Chrome (625) finish for corrosion resistance and clean appearance
• Compact footprint at 5.6 x 4.4 x 3 inches and 1.7 pounds

Compatibility

Designed as an OEM-style replacement or new-install deadbolt for commercial and light commercial door applications requiring Grade 2 single cylinder hardware with a C keyway and Bright Chrome finish.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI Grade 2 deadbolt requirements. Power down any associated access control or alarm systems connected to the door before beginning installation. Verify door prep dimensions and backset before mounting to confirm proper latch and strike alignment. Follow local building codes and applicable standards for commercial egress hardware when selecting and installing this unit.
