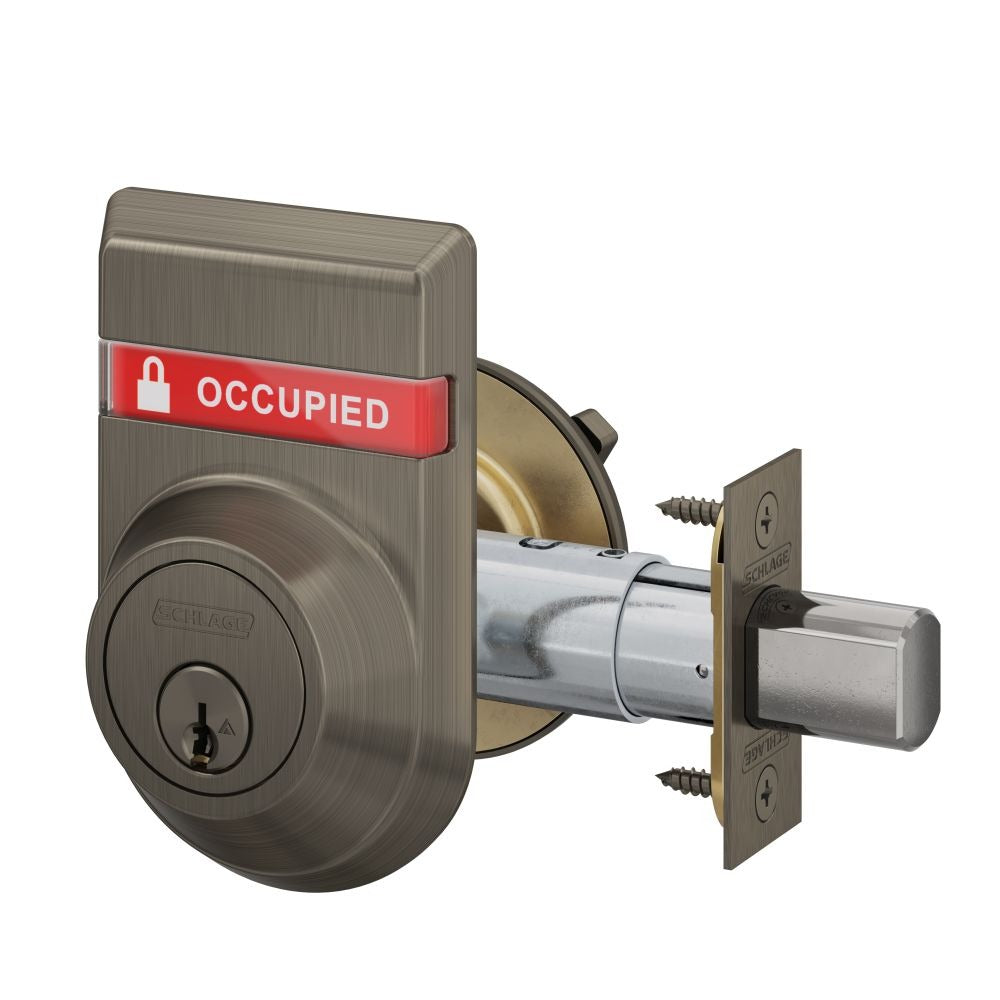

Schlage Commercial B560P613OSOCC Grade 2 Deadbolt Oil Rubbed Bronze

Product Description

The SCHLAGE COMMERCIAL B560P613OSOCC is a Grade 2 single cylinder deadbolt designed for commercial and institutional door applications. It features a C Keyway, keyed different (KD) configuration, and includes a 12287 latch and 10094 strike. The outside occupied/vacant indicator allows occupants and facility staff to see at a glance whether a space is in use, making this deadbolt well-suited for restrooms, private offices, conference rooms, and similar single-occupancy spaces. The Oil Rubbed Bronze finish provides a dark, matte appearance that holds up in high-contact environments. Licensed locksmiths, commercial door hardware installers, and facility maintenance technicians are the primary installers of this hardware.

This deadbolt is intended for commercial, institutional, and multi-family residential applications where a Grade 2 single cylinder deadbolt meets the security and code requirements. The occupied/vacant indicator serves applications such as single-user restrooms, fitting rooms, and private offices where visual occupancy status is required at the door exterior. The keyed different configuration means each unit ships with its own unique key, appropriate for installations where master keying is not required. The included 12287 latch and 10094 strike allow for a complete installation without sourcing additional hardware.

Key Features

• Grade 2 single cylinder deadbolt construction for commercial and institutional use
• C Keyway, keyed different (KD) configuration for individual key control
• Outside occupied/vacant indicator for visual room status at the door exterior
• Includes 12287 latch and 10094 strike for complete installation
• Oil Rubbed Bronze finish for a consistent appearance in commercial environments
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for commercial and institutional doors requiring a Grade 2 single cylinder deadbolt with C Keyway and an outside occupied/vacant indicator.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI/BHMA Grade 2 hardware requirements. Verify door prep dimensions, backset, and cross-bore size before installation to confirm compatibility with the existing door. Ensure the door is not under tension and the latch and strike are properly aligned before final fastening. Consult local building codes for occupancy indicator requirements in commercial restroom and single-occupancy space applications.
