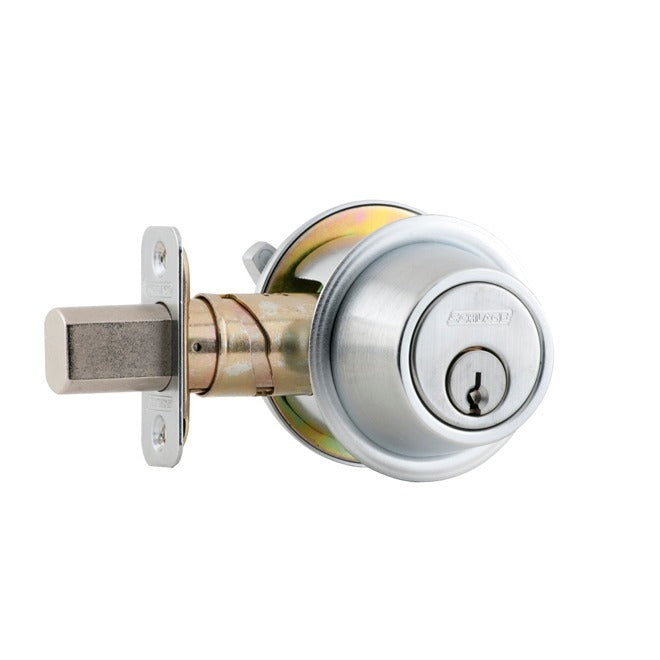

Schlage Commercial B560FP626 Fire Rated Deadbolt

Product Description

The SCHLAGE COMMERCIAL B560FP626 is a Grade 2 fire-rated single cylinder deadbolt designed for commercial and institutional door applications. It features a C keyway configuration and ships keyed differently (KD), making it suitable for master key system integration. The unit includes a 12294 latch and a 10094 strike plate, giving installers a complete, ready-to-install assembly. The satin chrome (626) finish provides corrosion resistance suited to high-traffic interior and vestibule doors. Licensed locksmiths, commercial door hardware contractors, and facilities maintenance teams are the primary installers of this hardware.

This deadbolt is intended for commercial, institutional, and multi-family building applications where fire-rated door assemblies are required. The single cylinder format accepts key entry from the exterior while the interior operates by thumb turn. The KD configuration supports facilities that require individual keying or integration into a larger keying hierarchy. The included latch and strike are matched components, reducing field sourcing and ensuring proper fitment at the time of installation.

Key Features

• Grade 2 commercial rating for durability in high-traffic door applications
• Fire-rated construction compliant with fire door assembly requirements
• C keyway with keyed different (KD) configuration for master key system compatibility
• Includes 12294 latch and 10094 strike for a complete installation package
• Satin chrome (626) finish for corrosion resistance on interior commercial doors
• Single cylinder operation: keyed exterior, thumb turn interior

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for Grade 2 fire-rated commercial door assemblies requiring a C keyway single cylinder configuration with satin chrome finish.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with ANSI and NFPA 80 fire door assembly requirements. Verify that the door and frame assembly carries the appropriate fire rating before installing fire-rated hardware. Confirm backset and door thickness compatibility before installation. Do not modify the latch, strike, or cylinder housing, as alterations may void the fire rating listing.
