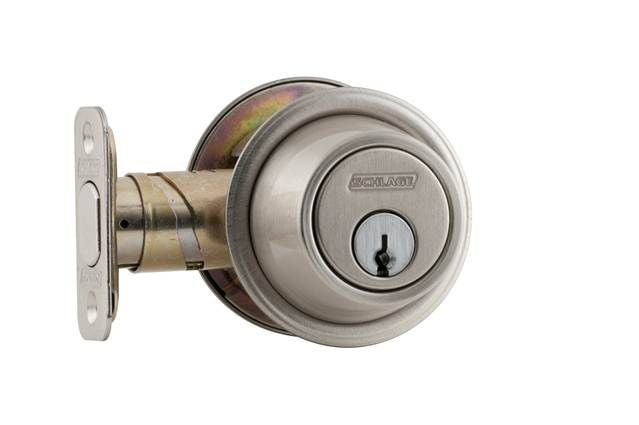

Schlage Commercial B560FP619 Fire Rated Deadbolt Satin Nickel

Product Description

The SCHLAGE COMMERCIAL B560FP619 is a Grade 2, fire-rated single cylinder deadbolt designed for commercial and institutional door hardware applications. It features a C keyway configuration, keyed different (KD) function, and ships with a 12294 latch and 10094 strike included. The satin nickel (619) finish provides corrosion resistance suited to high-traffic interior and corridor doors. This deadbolt meets fire-rated door assembly requirements, making it appropriate for doors requiring positive-latching hardware in rated assemblies. Licensed locksmiths, commercial door hardware installers, and general contractors are the typical trades handling this product.

This deadbolt is suited for commercial office buildings, multi-family residential corridors, institutional facilities, and other applications requiring a fire-rated, single-cylinder deadbolt with a Grade 2 performance rating. The C keyway allows integration into existing Schlage C keyway master key systems. The keyed-different configuration means each unit ships with its own unique key set. The included 12294 latch and 10094 strike simplify installation by providing all primary hardware components in a single package.

Key Features

• Grade 2 ANSI/BHMA performance rating for commercial-duty applications
• Fire-rated construction for use on rated door assemblies requiring positive-latching deadbolts
• Single cylinder operation with C keyway, compatible with Schlage C keyway masterkey systems
• Keyed different (KD) function — each unit ships with unique keyway cuts
• Includes 12294 latch and 10094 strike for complete installation
• Satin nickel (619) finish for durability in commercial environments

Compatibility

Designed as an OEM-style commercial deadbolt replacement or new-installation component for Grade 2 fire-rated door assemblies using Schlage C keyway hardware.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware installer in accordance with the door manufacturer's fire-rating requirements and applicable building codes. Before installation, confirm the door and frame are rated for a fire-rated deadbolt assembly, as improper installation can void the door's fire rating. Standard installation tools include a hole saw set, chisel, and screwdriver; consult the door manufacturer's template for bore dimensions. Do not modify the latch or strike in ways that could compromise the fire-rated assembly.
