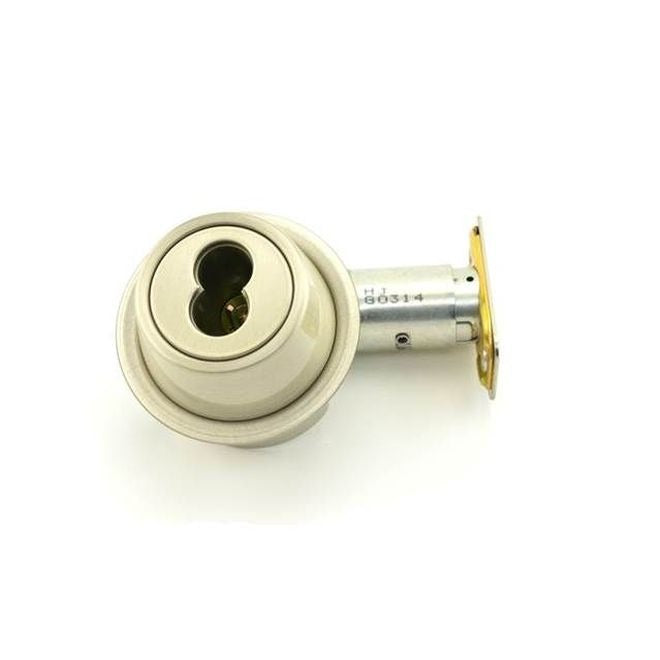

Schlage Commercial B560B619 Grade 2 Deadbolt Satin Nickel

Product Description

The SCHLAGE COMMERCIAL B560B619 is a Grade 2 single cylinder deadbolt designed for small format interchangeable core (SFIC) applications in commercial and institutional door hardware installations. This deadbolt ships with a 12287 latch and 10094 strike plate, providing a complete assembly ready for installation. The satin nickel finish offers a clean, professional appearance suited to a wide range of commercial interiors. At 1.7 pounds, the unit is compact and straightforward to handle during installation. The SFIC format allows facility managers and locksmiths to rekey the core without disassembling the lock body, making it a practical choice for large keying systems.

This deadbolt is suited for commercial and institutional settings where Grade 2 security and small format interchangeable core keying are required. Typical applications include office buildings, multi-family housing, and institutional facilities where a master key or large-format key control system is already in place. The included latch and strike simplify procurement by reducing the need to source hardware separately. This product is sold individually and is available in case quantities of 4.

Key Features

• Grade 2 single cylinder deadbolt rated for commercial and institutional use
• Small format interchangeable core (SFIC) design allows core removal and rekeying without lock disassembly
• Includes 12287 latch and 10094 strike for a complete door prep installation
• Satin nickel finish for a consistent, professional appearance in commercial interiors
• Compact form factor at 5.7 x 4.5 x 3.2 inches and 1.7 pounds

Compatibility

Designed as an OEM-style replacement or new-installation deadbolt for commercial and institutional doors configured for small format interchangeable core cylinders.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI Grade 2 deadbolt requirements. Ensure the door and frame are properly prepped to the manufacturer door preparation specifications before installing the latch and strike. Disengage all power to any adjacent electrified hardware before beginning work on the door assembly. Verify core compatibility with the existing SFIC key system before finalizing installation.
