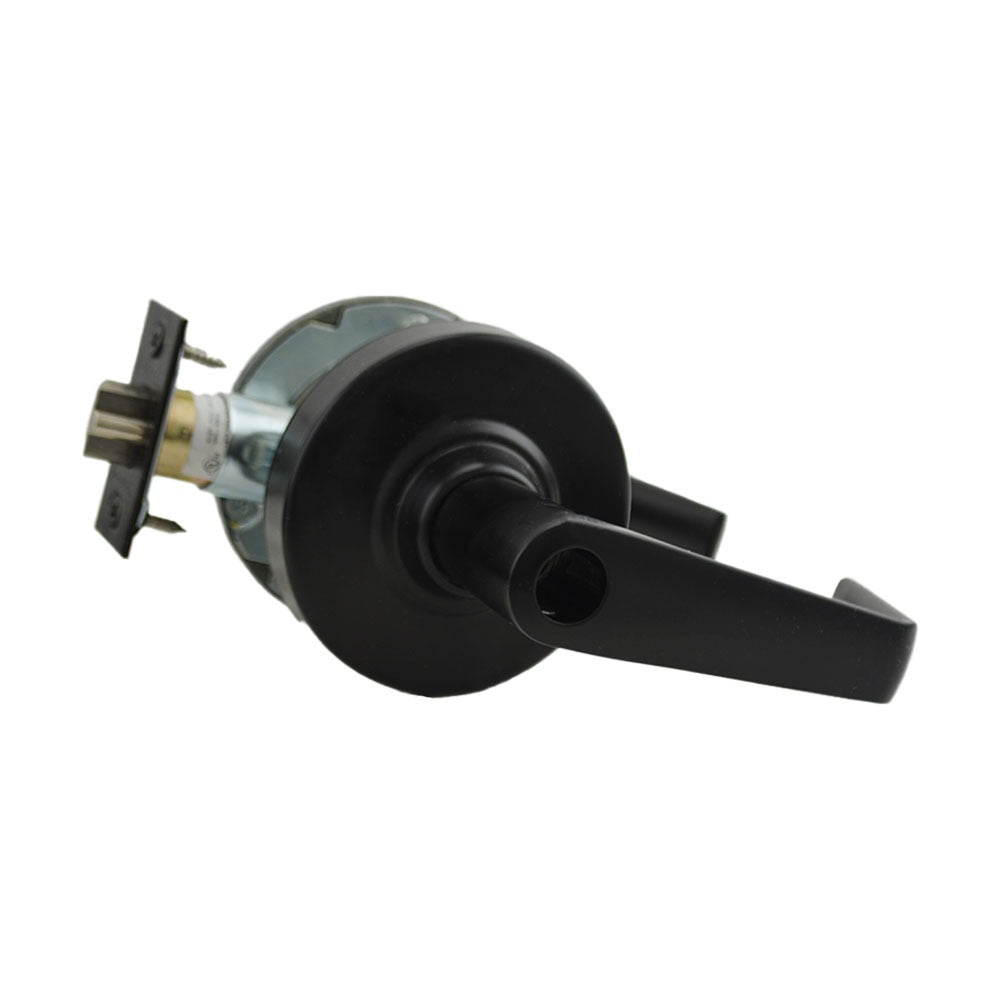

Schlage Commercial ALX80LSAT622 Grade 2 Storeroom Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX80LSAT622 is a Grade 2 storeroom lever lock from the ALX Series, designed for commercial and institutional door applications. The storeroom function keeps the lever locked from the outside at all times, requiring a key for entry while allowing free egress from the inside. This lock ships less cylinder, meaning the cylinder core must be supplied separately. It includes a 2-3/4 inch deadlatch and an ANSI standard strike. The matte black finish (622) suits modern commercial interiors. Licensed locksmiths, commercial door hardware technicians, and general contractors typically handle installation.

The ALX80LSAT622 is suited for storeroom, supply room, and restricted-access door applications in commercial, institutional, and light industrial settings. The Saturn lever trim profile fits standard commercial doors with ANSI A115 prep. The less-cylinder configuration makes this lock compatible with interchangeable core or conventional cylinder programs, allowing facilities to supply their own keying system. This unit is sold individually.

Key Features

• Grade 2 ANSI storeroom function: outside lever always locked, free egress from inside
• Less cylinder configuration supports interchangeable core and conventional cylinder programs
• Includes 2-3/4 inch deadlatch for positive door latching
• Includes ANSI standard strike for direct installation on prepped frames
• Matte black (622) finish for commercial interior applications
• Saturn lever trim profile

Compatibility

Designed as an OEM-style replacement or new-installation lever lock for commercial and institutional doors with standard ANSI A115 door prep. Specific compatible model or system information was not provided in available product data.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician. Power is not required for this mechanical lock, but all door prep dimensions should be verified against the ANSI A115 standard before installation. Because this lock ships less cylinder, a compatible cylinder must be sourced and installed separately before the lock is placed into service. Follow local building and life-safety codes regarding egress hardware on commercial and institutional doors.
