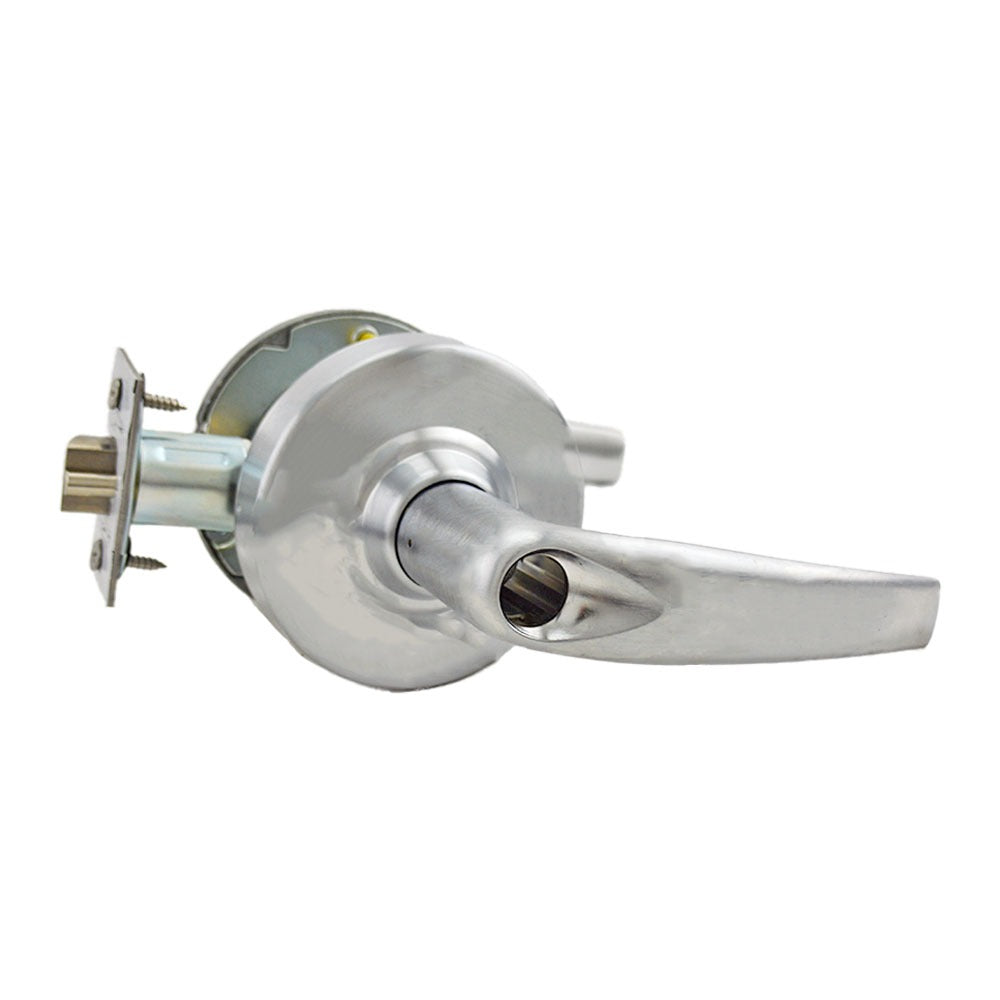

Schlage Commercial ALX80LATH626 Storeroom Lever Lock

Product Description

The SCHLAGE COMMERCIAL ALX80LATH626 is a Grade 2 storeroom lever lock from the ALX Series, finished in satin chrome. It ships complete with a 47267042 2-3/4 inch deadlatch and a 47267101 ANSI strike plate. The lock is sold less cylinder, meaning a separate cylinder must be supplied and installed to complete the lockset. The storeroom function keeps the outside lever locked at all times — entry requires a key — while the inside lever remains free for egress. Typical installations include commercial storage rooms, supply closets, and light-duty institutional spaces where controlled single-point access is required. Installation is performed by a licensed locksmith or qualified door hardware professional.

The ALX80LATH626 is suited for light commercial and institutional interior door applications where a storeroom function is the specified hardware requirement. The Athens lever design provides a familiar, ergonomic grip. The satin chrome finish coordinates with standard commercial hardware schedules. The included 2-3/4 inch deadlatch backset and ANSI strike simplify rough-in on standard commercial hollow-metal or wood door preparations. This unit is sold individually and is intended for single-door installations on interior doors with standard ANSI prep.

Key Features

• Storeroom function: outside lever always locked, inside lever always free for egress
• Grade 2 commercial rating suitable for light commercial and institutional use
• Sold less cylinder — field-supplied cylinder required for key entry
• Includes 47267042 2-3/4 inch deadlatch for standard door prep
• Includes 47267101 ANSI strike plate for compatible door frames
• Satin chrome (626) finish for a clean, professional appearance

Compatibility

Designed as an OEM-style replacement or new-installation lever lock for commercial and institutional doors requiring a storeroom function with a standard ANSI door preparation and 2-3/4 inch backset deadlatch.

Installation Notes

Installation should be performed by a licensed locksmith or experienced door hardware technician. Verify the door preparation matches the standard ANSI A115 series cutout before fitting the lock body. Because this unit ships less cylinder, the appropriate cylinder must be sourced and installed separately before the lock is operational. Confirm local building and fire codes for egress requirements before specifying a storeroom function on any door in an occupied commercial space.
